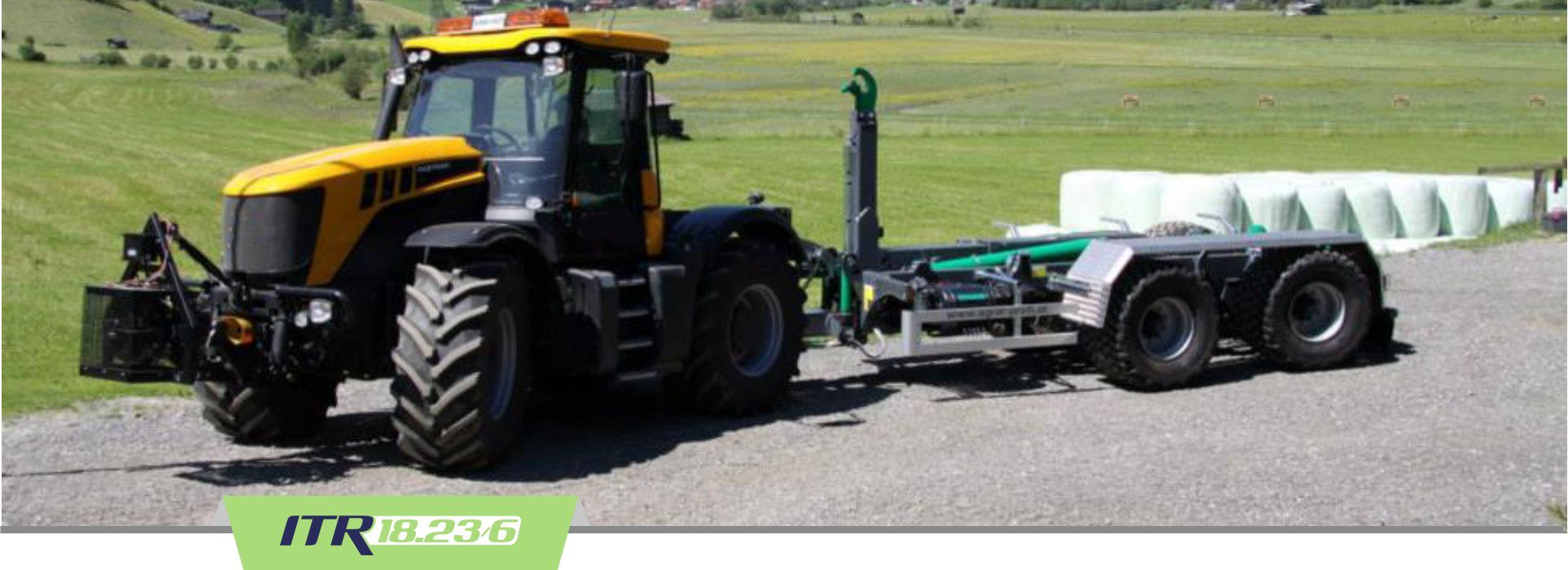

IMMAGINE_ITR 18 23_6

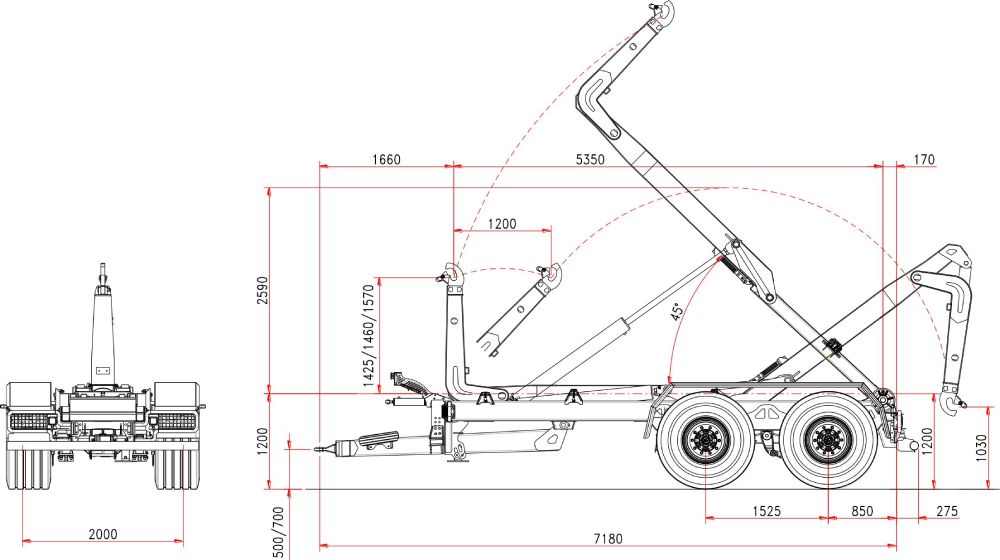

IMMAGINE_ITR 18 23_6 - disegno
2 AXLES HOOKLIFT TRAILER ITR 18.23/6 ARTICULATED MECHANIC SUSPENSIONS

Standard features

CHASSIS

Frame section
250 X 100 mm
Draw bar
silent blocks
Leaf spring suspension
tandem 24 t
Axles wheelbase
1525 mm
Axles section
2 X 110 mm
Axles
fixed + fixed
Track
2000 mm
Brake drums
406 X 120
Braking system
hydraulic
Towing eye
turning
Support foot
hydraulic
Wheel size
500/60 R22,5
Chassis loading level
1220 mm
3 point hydraulic stab. cylinder
standard

WEIGHT AND DIMENSION

P.T.T. (G.T.W.)
23 t
Container handling cap.
4500/6200
Max speed
40 km/h
(*) Tare
5300 kg

ARTICULATED ARM

Run
1200 mm
Hook level
1425/1460/1570
Container internal/external locking
hydraulic
Tipping angle
47°
Hoist start cylinder
standard
Tipping capacity
18 t
Lifting capacity
18 t

OLEO-DYNAMIC SYSTEM

Tractor hydraulics
2 elementi d.e.
Oil volume (hooklift filled)
46 l
Hooklift filled:
Tipping
11,4 l
Loading/unloading
12,7 l
3 sections electro-valves with control Bobeasy base
(*) Tare: the trailer weight is referred to the basic unit without options and accessories.

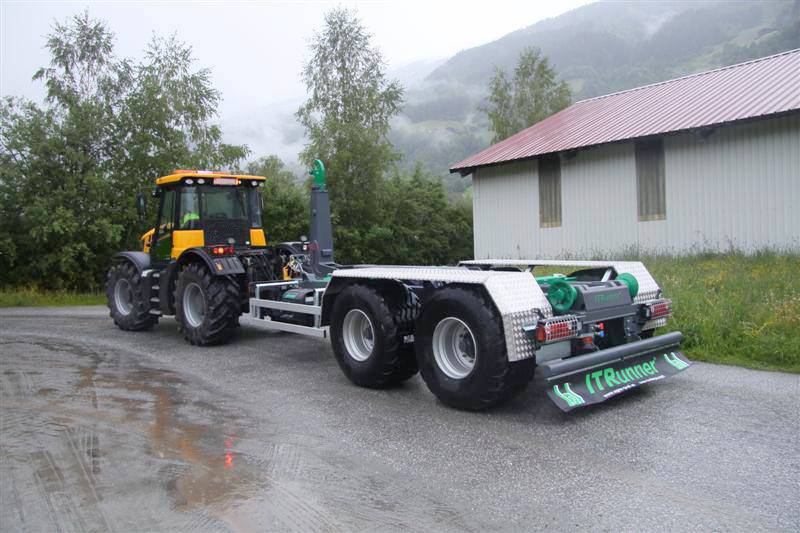

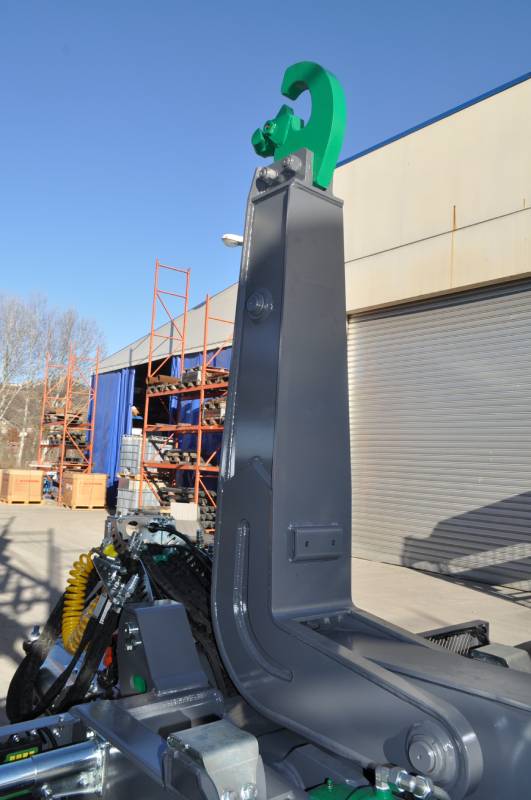

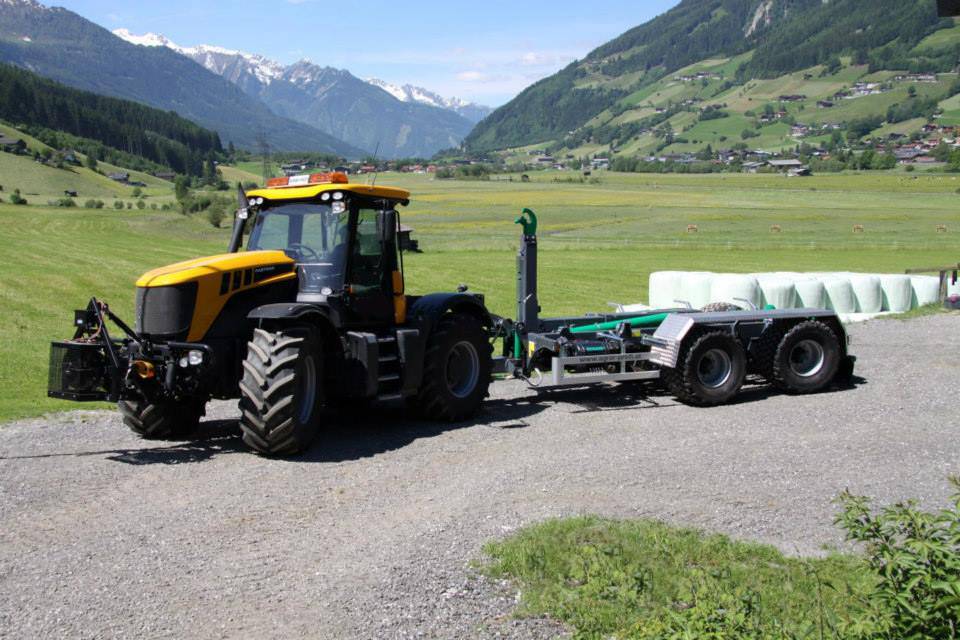

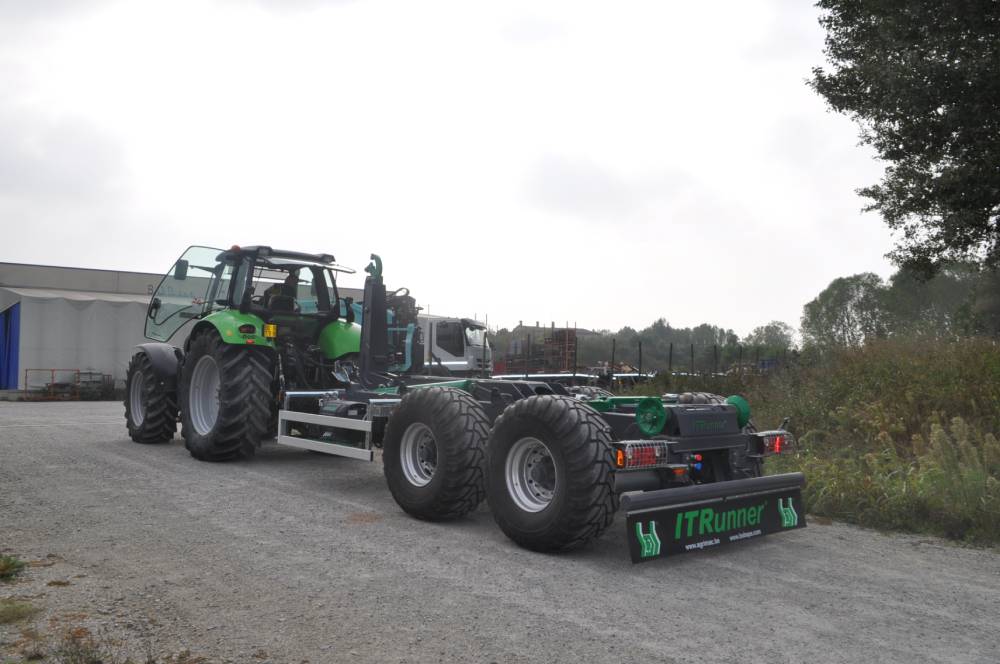

PHOTOS
