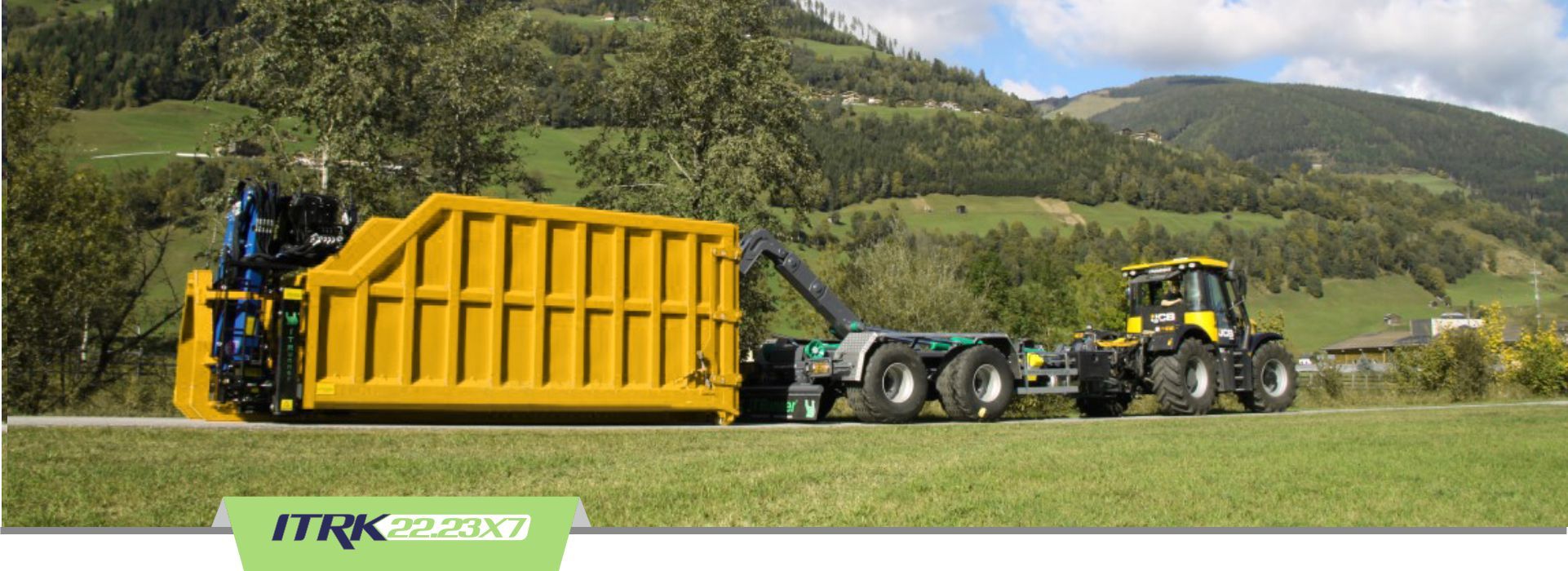

IMMAGINE_ITRK 22 23X7
2 AXLES HOOKLIFT ITRK 22.23 X7 TELESCOPIC AND ARTICULATED  HYDRAULIC SUSPENSIONS

Standard features

CHASSIS

Frame section
250X100 mm
Draw bar
hidraulic
Suspension
24 t
Axles wheelbase
1810 mm
Axles section
2X150 mm
Axles
fixed + fixed
Track
2000 mm
Brake drums
406X120
Braking system
hydraulic
Towing eye
turning
Support foot
2Xhidraulic
Wheel size
500/60 R22,5
Chassis loading level
1230 mm
Front stab. Cylinder 3 point
standard

WEIGHT AND DIMENSION

P.T.T. (G.T.W.)
23 t
Container handling cap.
5000/7200
Max speed
40 km/h
(*) Tare
6350 kg

TELESCOPIC AND ARTICULATED ARM

Run
1150 + 850 mm
Hook level
1425/1460/1570
Container internal/external locking
hydraulic
Tipping angle
51°
Tipping capacity
22 t
Lifting capacity
22 t

OLEO-DYNAMIC SYSTEM

Tractor hydraulics
4 controls d.a.
Oil volume (hooklift filled)
50 l
Hooklift filled:
Tipping
12 l
Loading/unloading
12 l
Electro-valves 4 section with BOBEASY base control
(*) Tare: the trailer weight is referred to the basic unit without options and accessories.

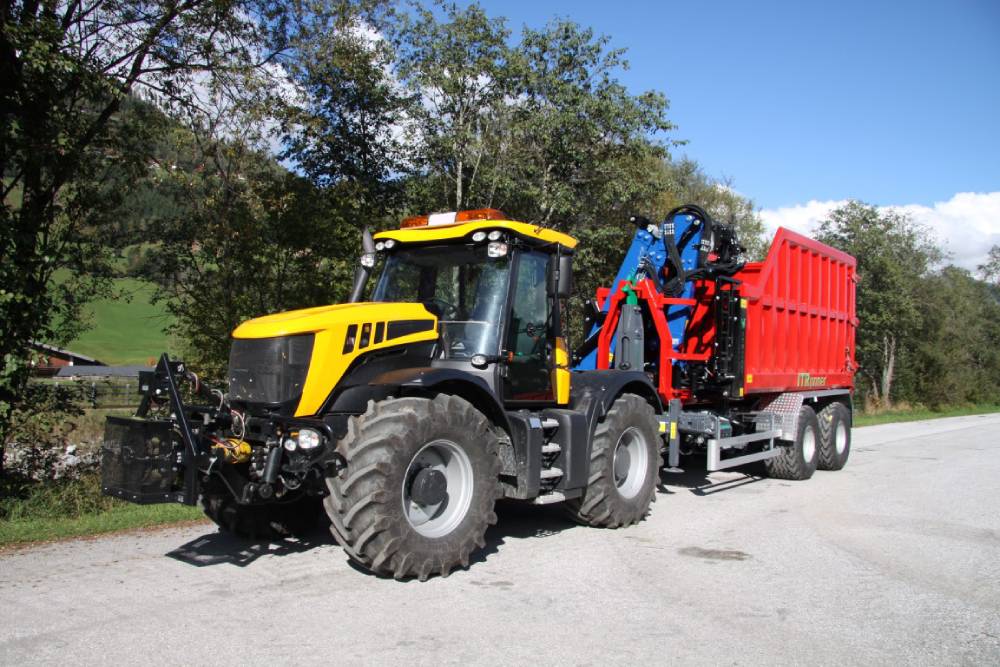

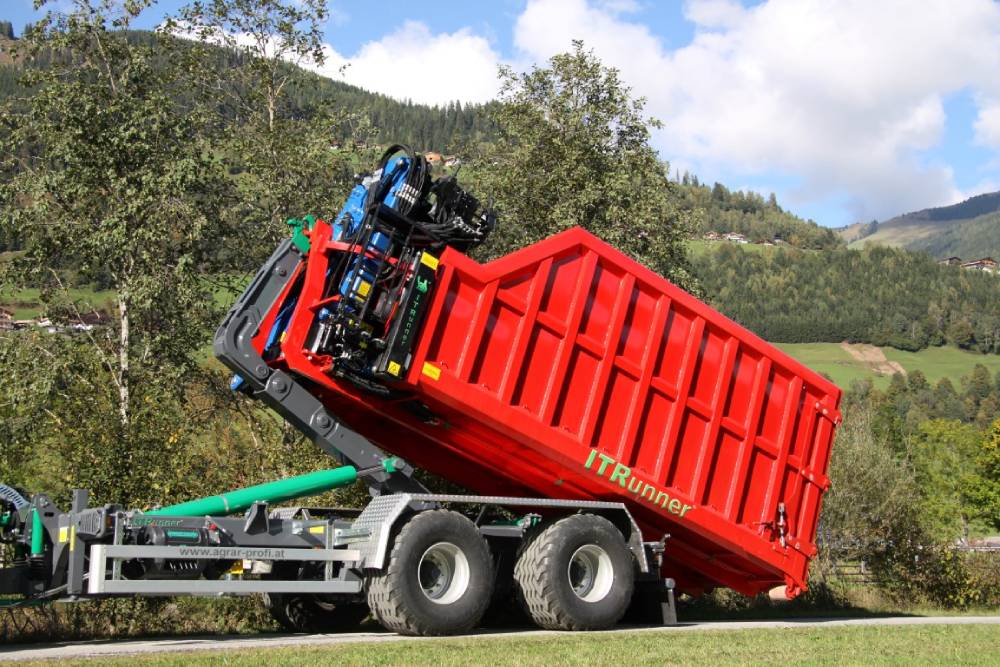

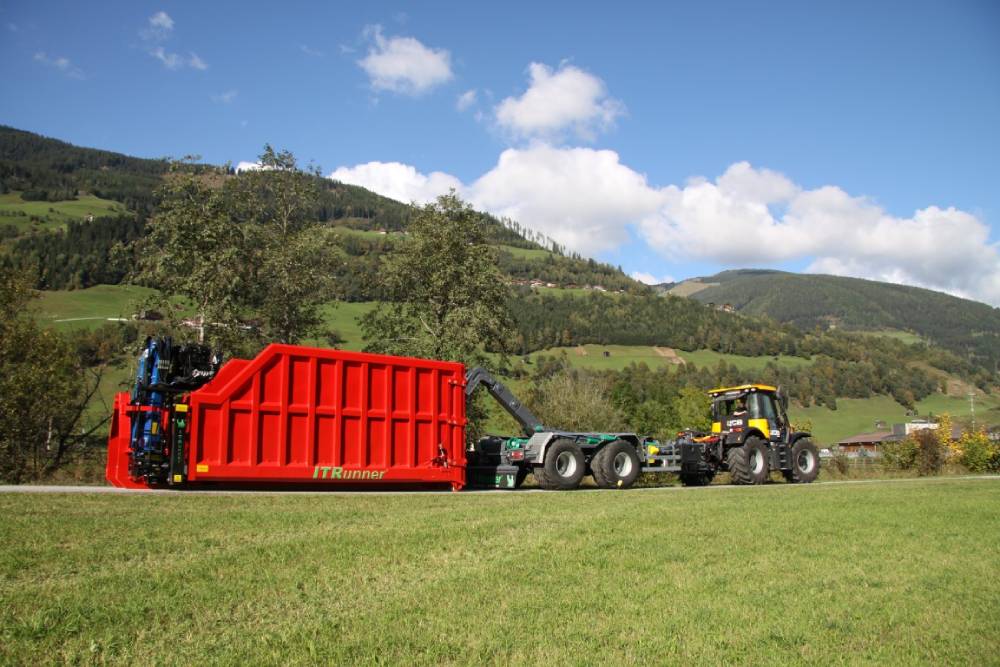

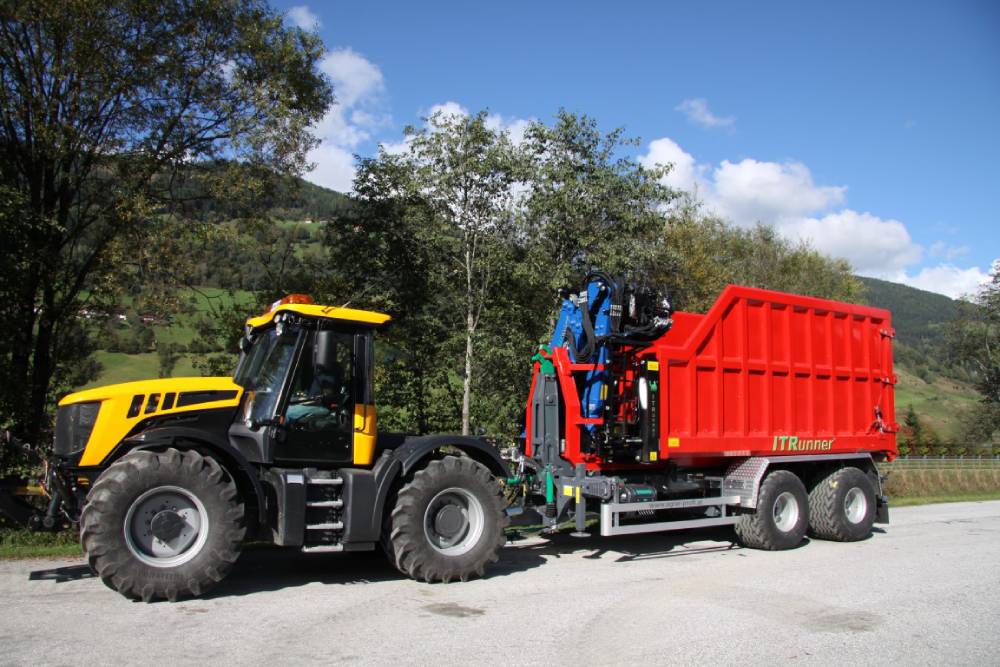

PHOTOS
