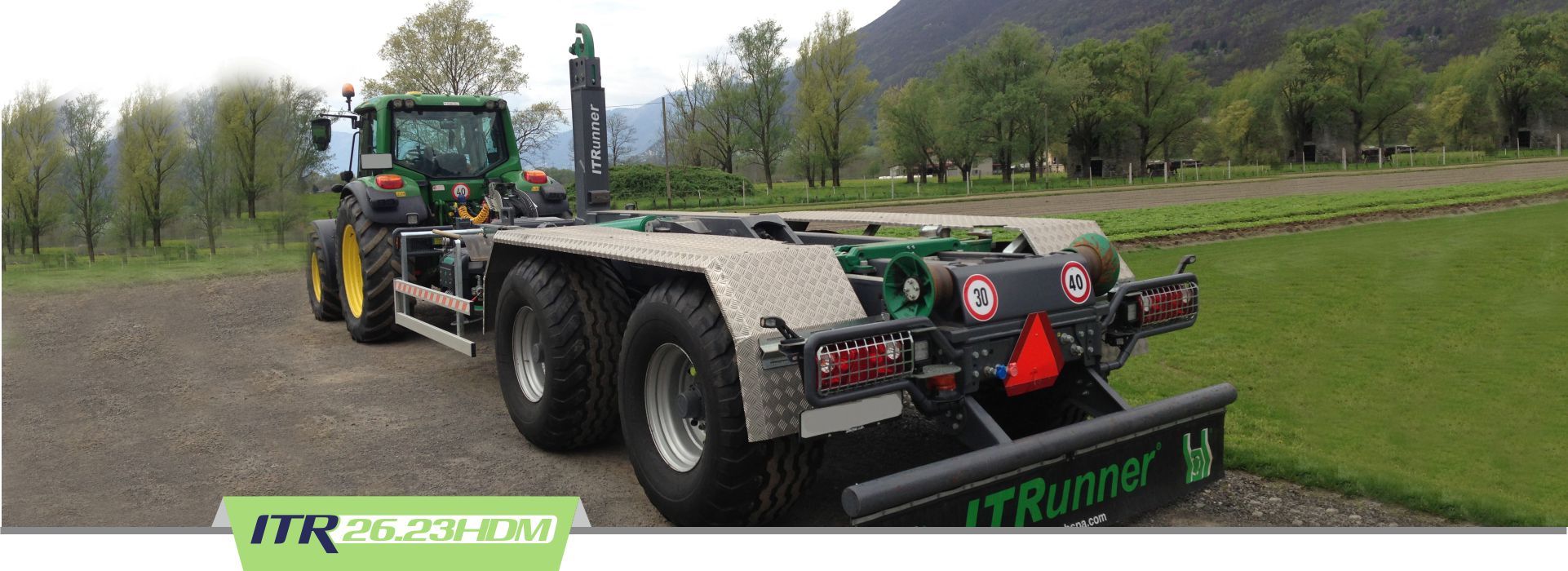

IMMAGINE_ITR 26 23HDM

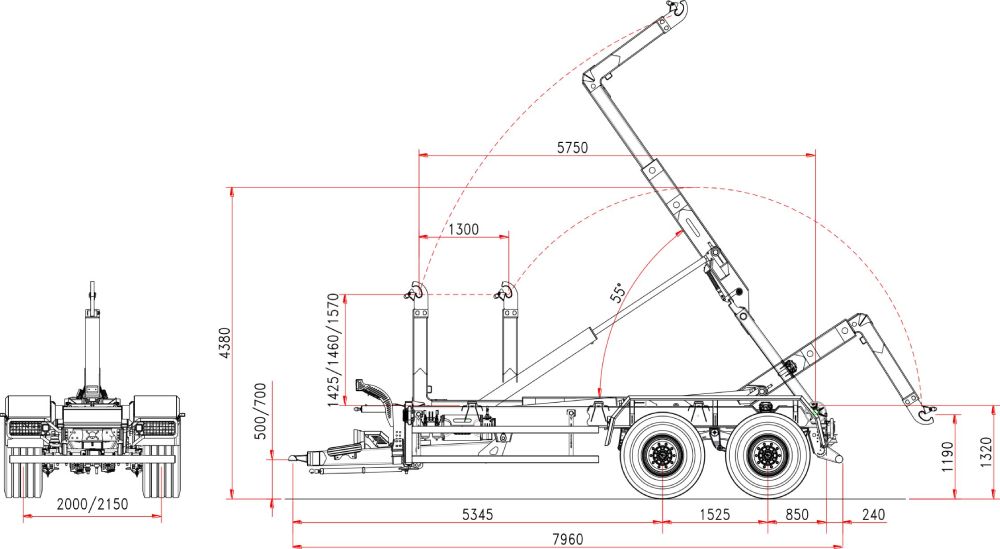

IMMAGINE_ITR 26 23HDM - disegno
2 AXLES HOOKLIFT ITR 26.23 HDM TELESCOPIC MECHANIC SUSPENSIONS

Standard features

CHASSIS

Frame section
250 x 100 mm
Draw bar
silent block
Leaf spring suspension
tandem 24 t
Axles wheelbase
1525 mm
Axles section
2*150mm
Axles
fixed + fixed
Track
2000 mm
Brake drums
406 x 120
Braking system
hidraulic
Towing eye
turning
Support foot
2xhydraulic
Wheel size
550/60 R22,5
Chassis loading level
1320 mm
Front stab. Cylinder 3 point
standard

WEIGHT AND DIMENSION

P.T.T. (G.T.W.)
23 t
Container handling cap.
5000/6500
Max speed
40 km/h
(*) Tare
6450 kg

TELESCOPIC ARM

Run
1300 mm
Hook level
1425/1460/1570
Container internal/external locking
hydraulic
Tipping angle
55°
Hoist start cylinder
standard
Tipping capacity
26 t
Lifting capacity
26 t

OLEO-DYNAMIC SYSTEM

Tractor hydraulics
1 control d.d.
Trailer hydraulics:
Cardan+piston pump
108 l/1000 rpm
Oil tank
160 l
Flow control electro-hydraulics with ground manual levers and remote radio control Bobeasy
(*) Tare: the trailer weight is referred to the basic unit without options and accessories.

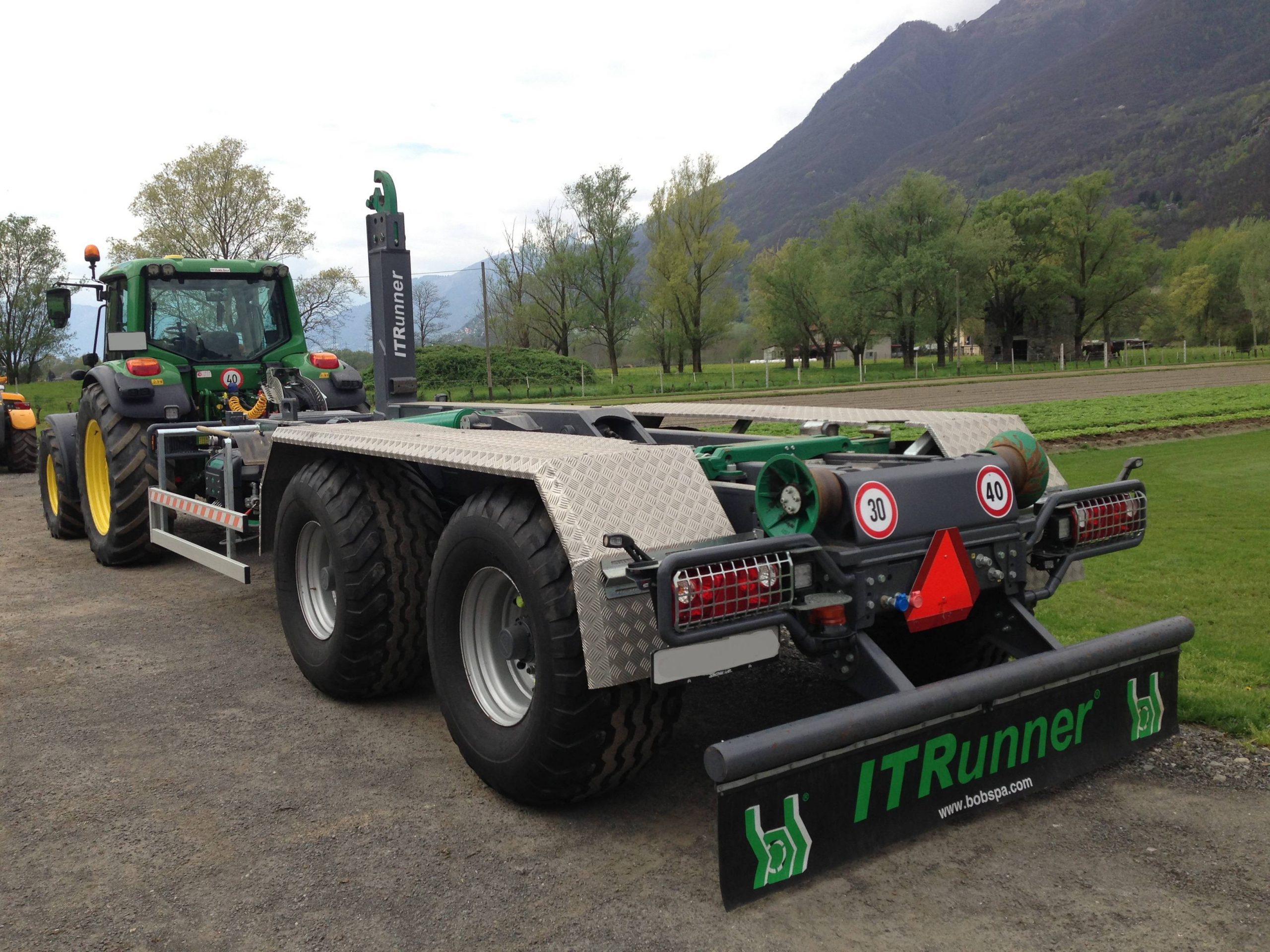

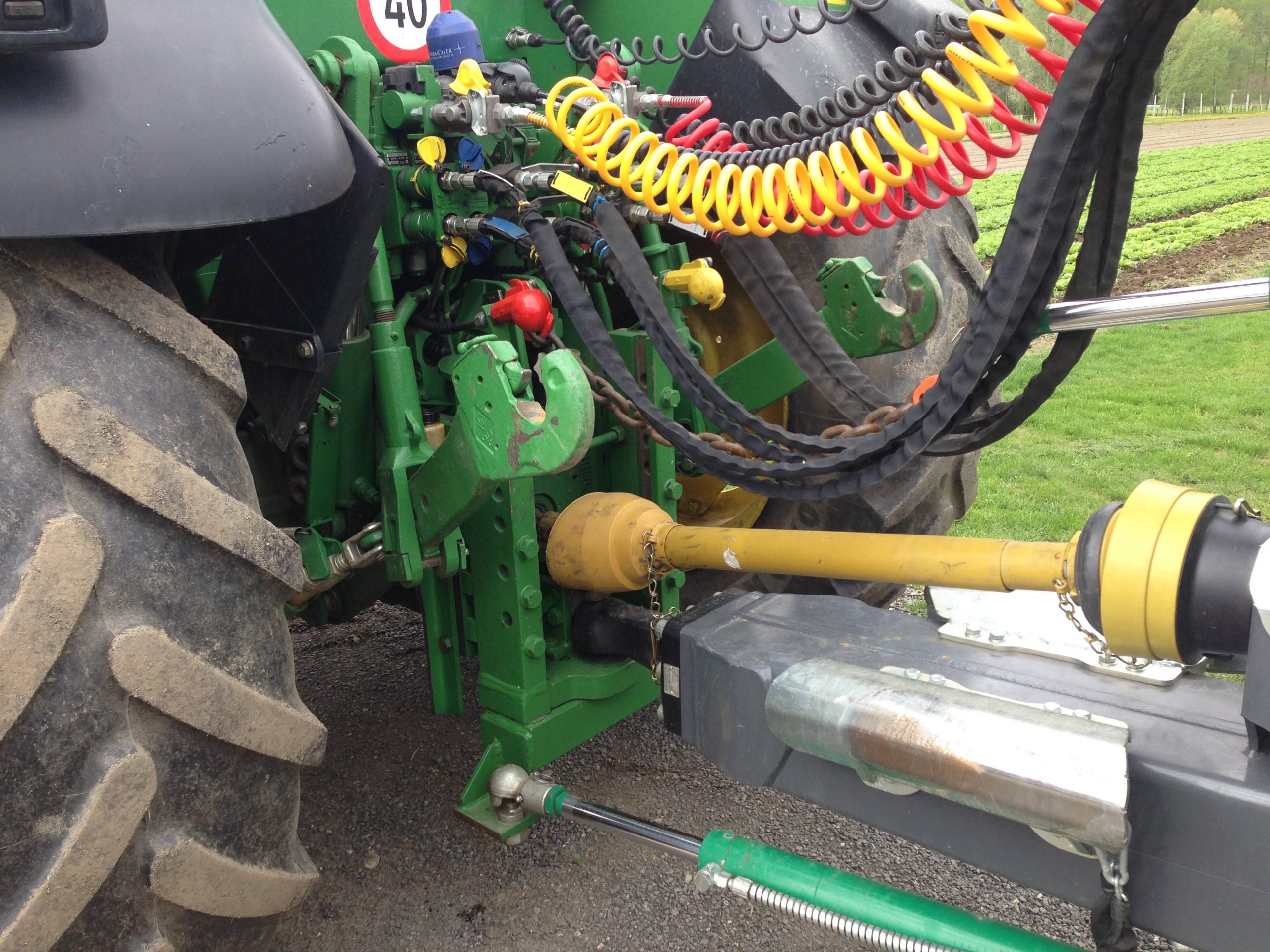

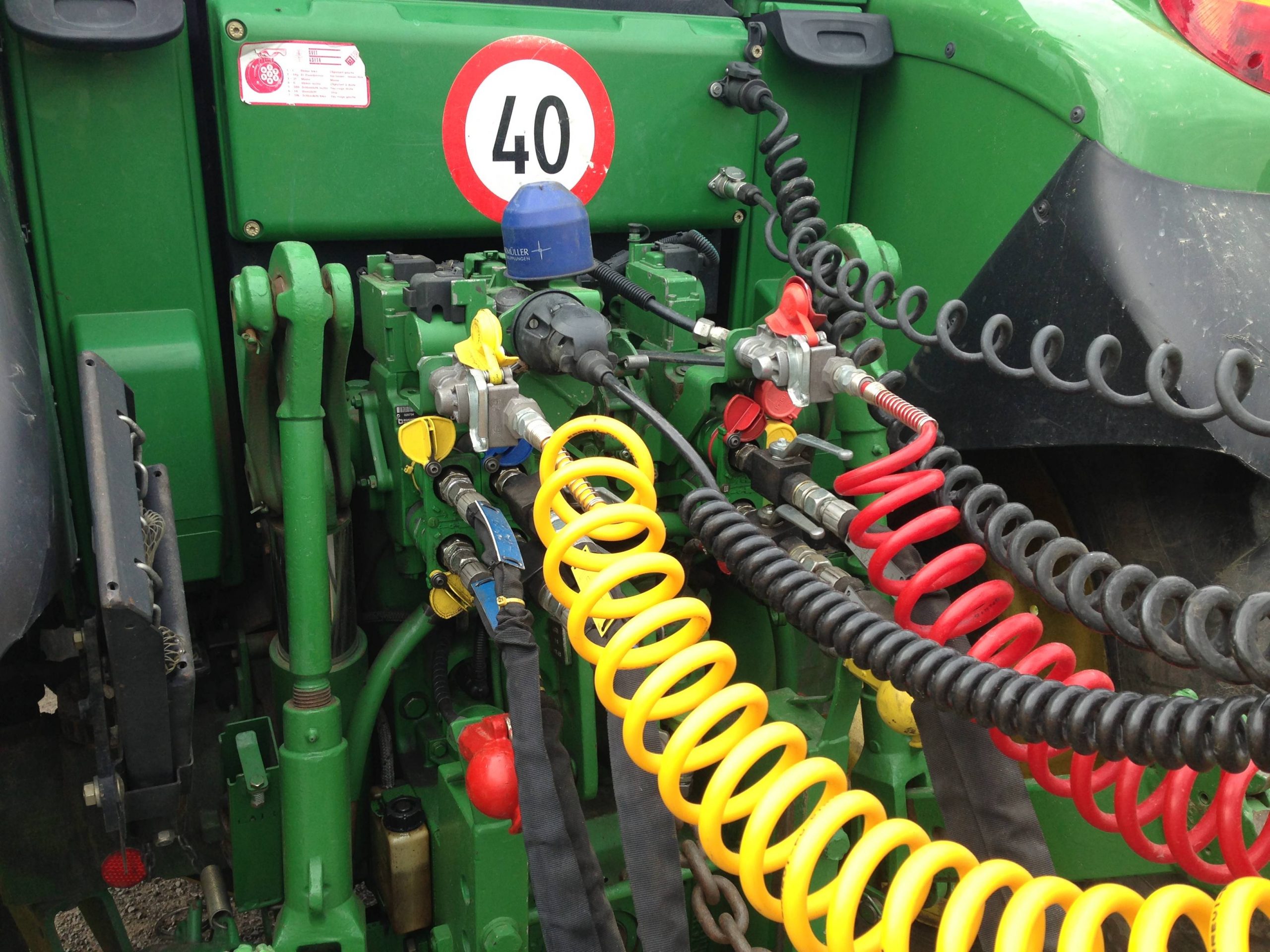

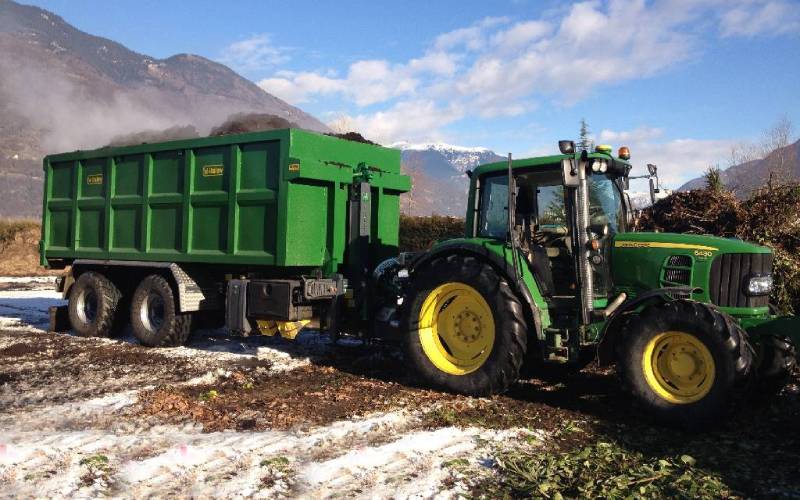

PHOTOS
