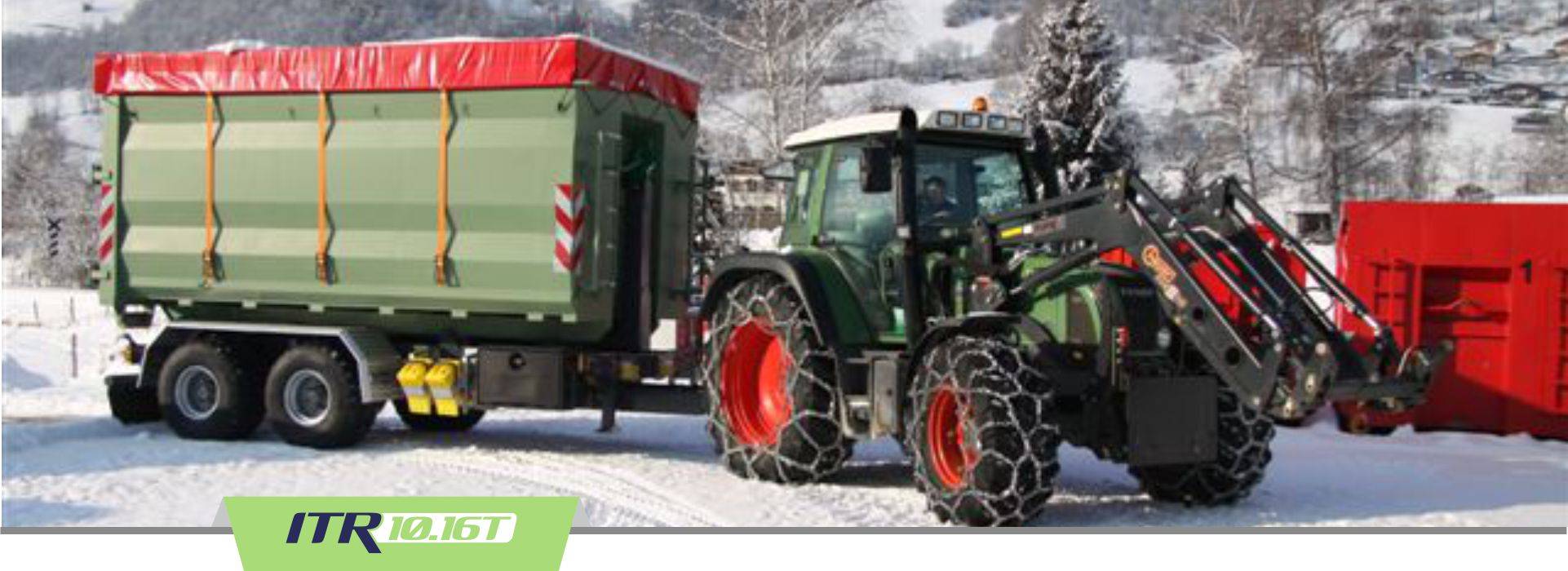

IMMAGINE_ITR 10 16T

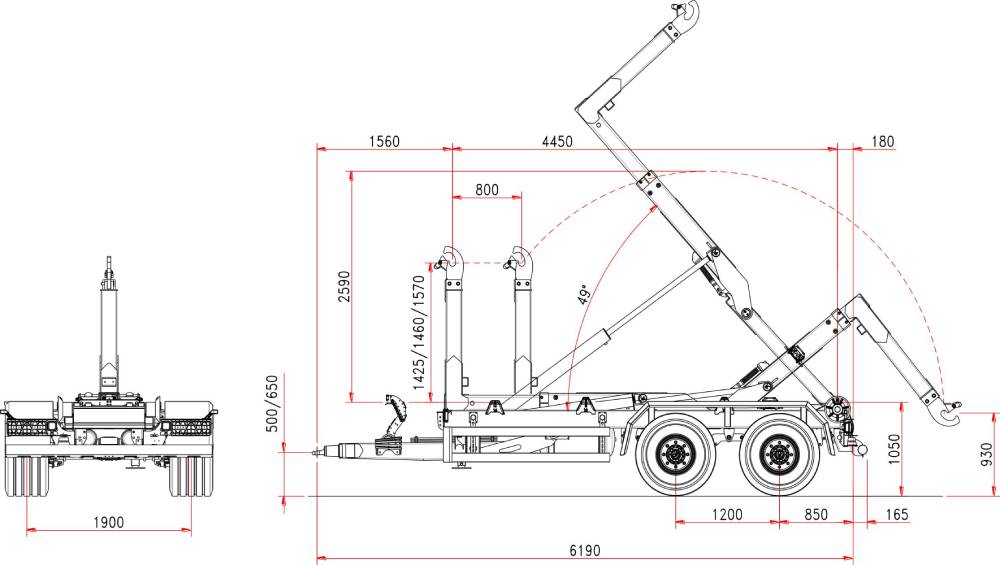

IMMAGINE_ITR 10 16T - disegno
2 AXLES HOOKLIFT TRAILER ITR 10.16T TELESCOPIC MECHANIC SUSPENSIONS

Standard features

CHASSIS

Frame section
200 X 100 mm
Draw bar
silent blocks
Leaf spring suspension
16 t
Axles wheelbase
1200 mm
Axles section
2 X 100 mm
Axles
fixed + fixed
Track
1900 mm
Brake drums
350*90
Braking system
hydraulic
Towing eye
turning
Support foot
hydraulic
Wheel size
500/50-17
Chassis loading level
1050 mm

WEIGHT AND DIMENSION

P.T.T. (G.T.W.)
16 t
Container handling cap.
3500/5500
Max speed
40 km/h
(*) Tare
3500 kg

TELESCOPIC ARM

Run
800 mm
Hook level
1425/1460/1570
Container internal/external locking
hydraulic
Tipping angle
49°
Tipping capacity
10 t
Lifting capacity
10 t

OLEO-DYNAMIC SYSTEM

Tractor hydraulics
3 controls d. a.
Oil volume (hooklift filled)
30 l
Hooklift filled:
Tipping
6,8 l
Loading/unloading
7,4 l
(*) Tare: the trailer weight is referred to the basic unit without options and accessories.

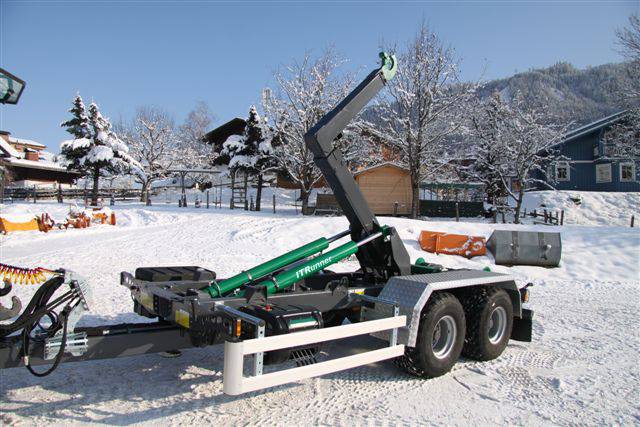

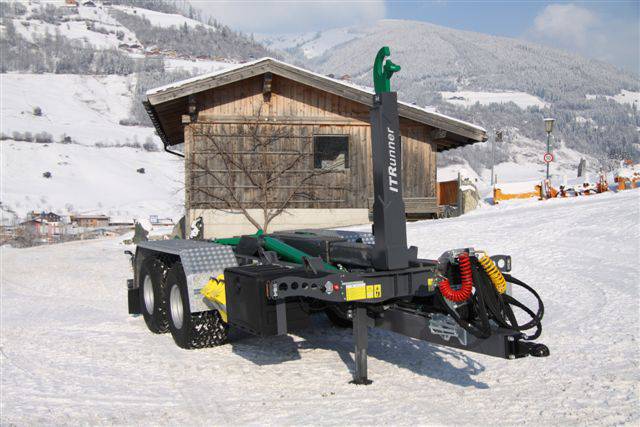

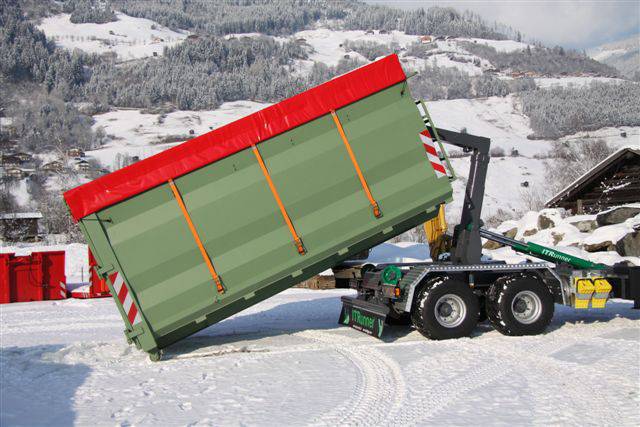

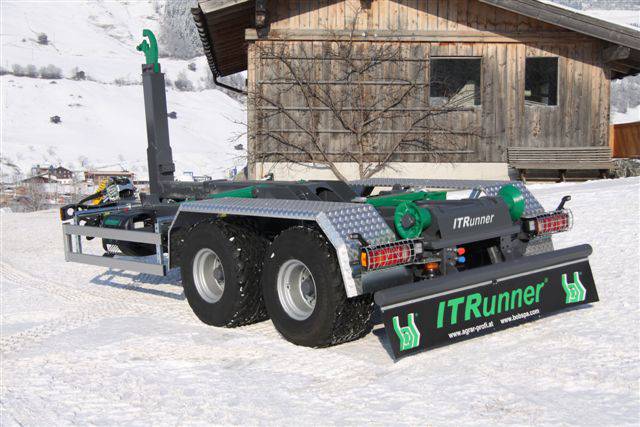

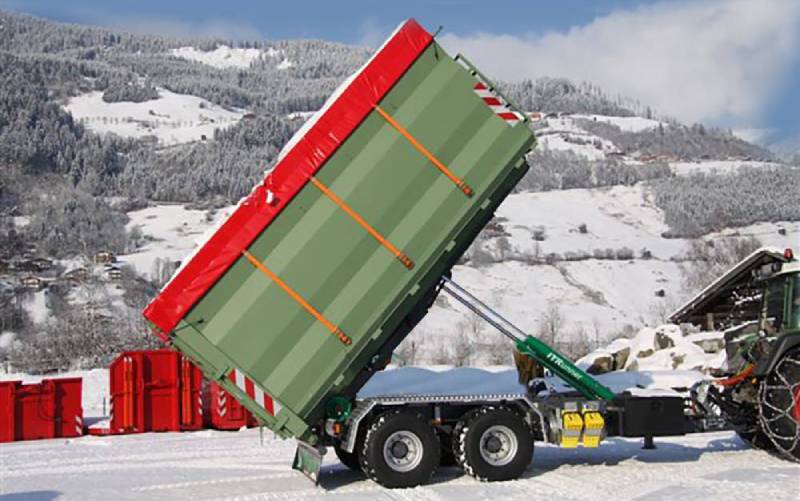

PHOTOS
