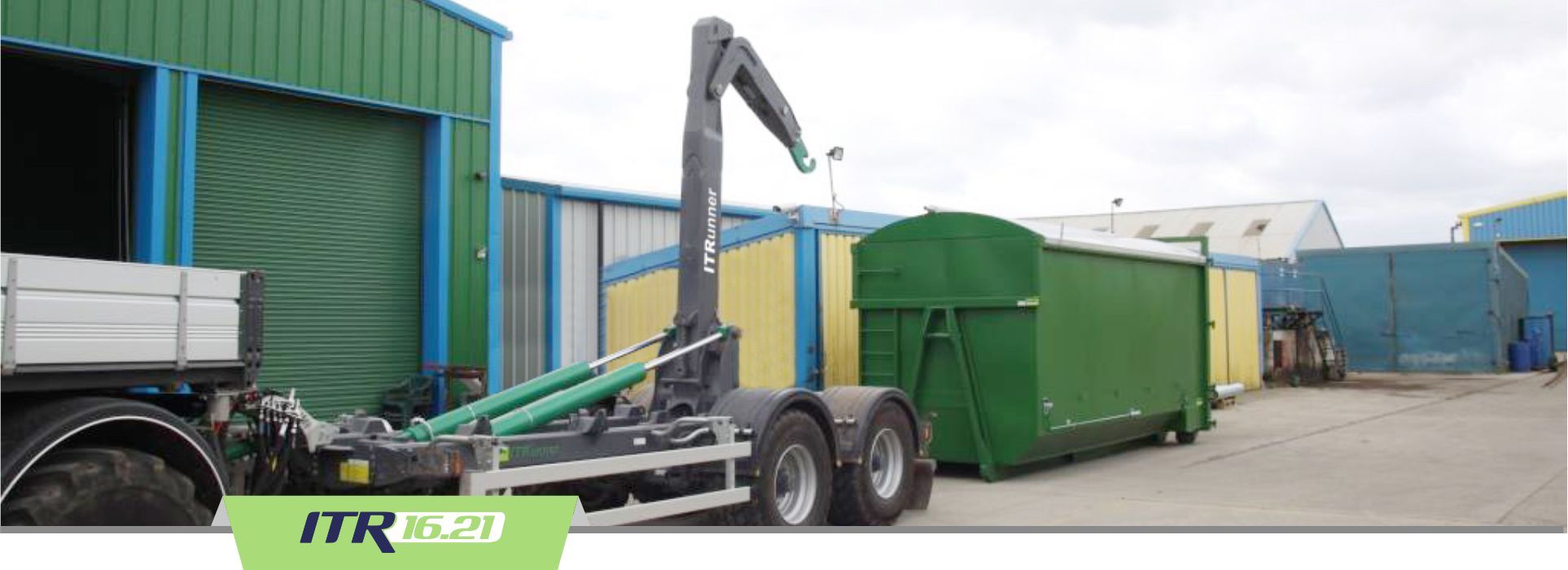

IMMAGINE_ITR 16 21

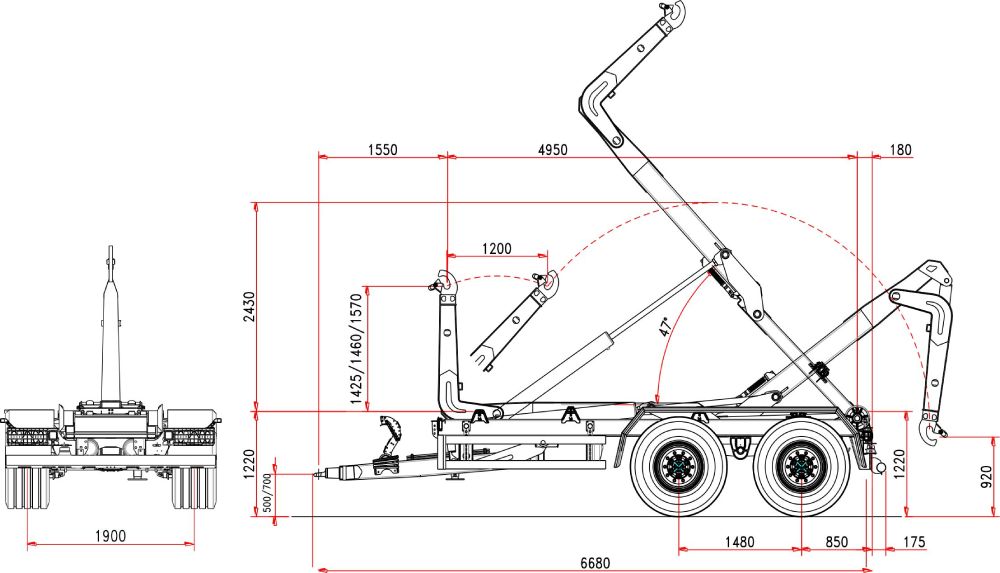

IMMAGINE_ITR 16 21 - disegno
2 AXLES HOOKLIFT TRAILER ITR 16.21 ARTICULATED MECHANIC SUSPENSION

Standard features

CHASSIS

Frame section
200 X 100 mm
Draw bar
silent blocks
Leaf spring suspension
21 t
Axles wheelbase
1480 mm
Axles section
2*110 mm
Axels
fixed + fixed
Track
2000 mm
Brake drums
400 X 80
Braking system

hydraulic
Towing eye
turning
Support foot
hydraulic
Wheel size
500/60 R22,5
Chassis loading level
1220 mm

WEIGHT AND DIMENSION

P.T.T. (G.T.W.)
21 t
Container handling cap.
4000/6000
Max speed
40 km/h
(*) Tare
4680 kg

ARTICULATED ARM

Run
1200 mm
Hook level
1425/1460/1570
Container external locking
hydraulic
Tipping angle
47°
Tipping capacity
16 t
Lifting capacity
16 t

OLEO-DYNAMIC SYSTEM

Tractor hydraulics
3 controld d.a.
Oil volume (hooklift filled)
45 l
Hooklift filled:
Tipping
8 l
Loading/unloading
9,3 l
(*) Tare:the trailer weight is referred to the basic unit without options and accessories.

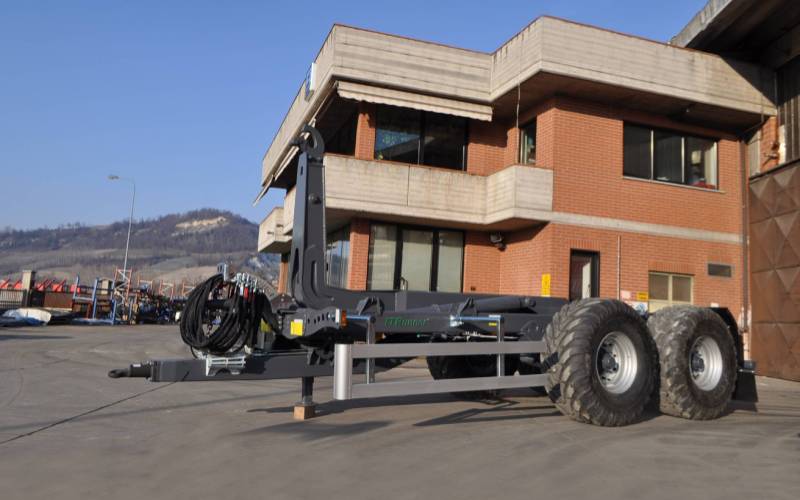

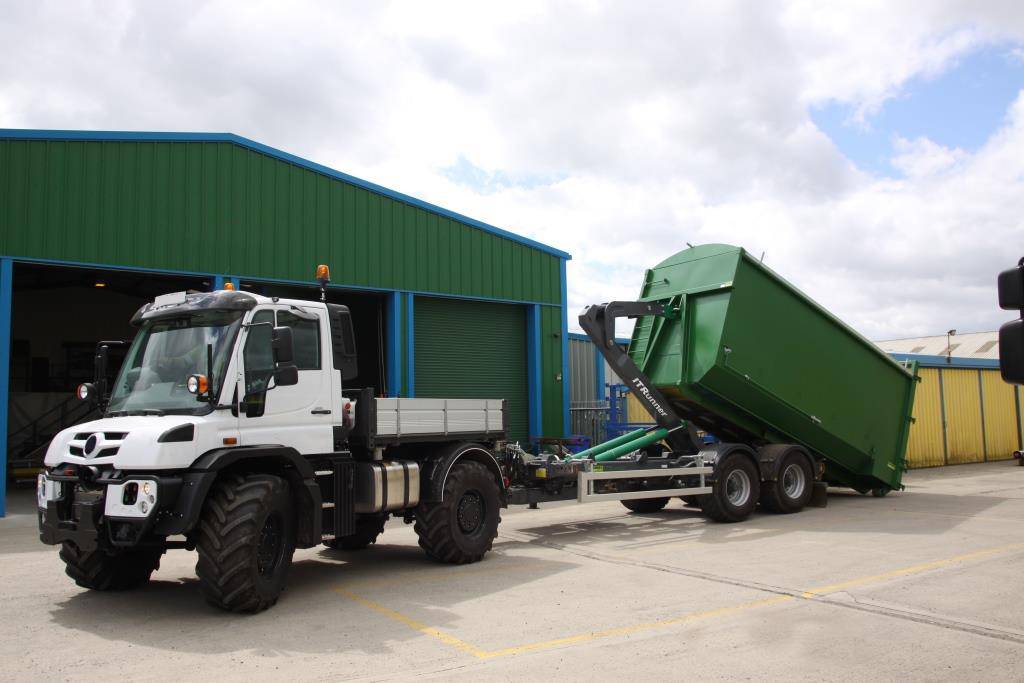

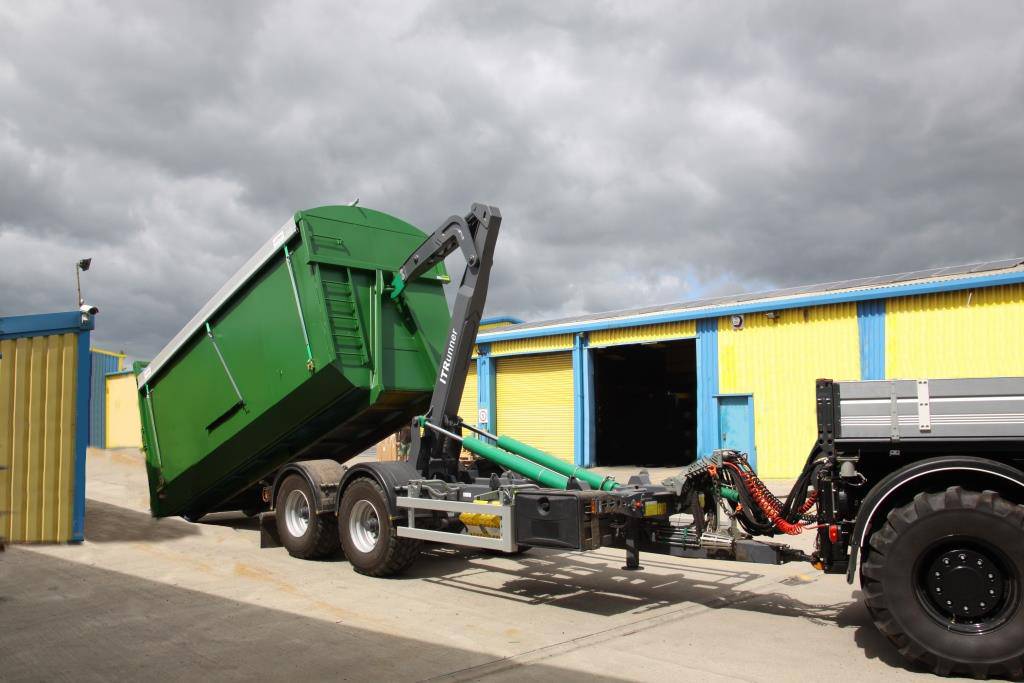

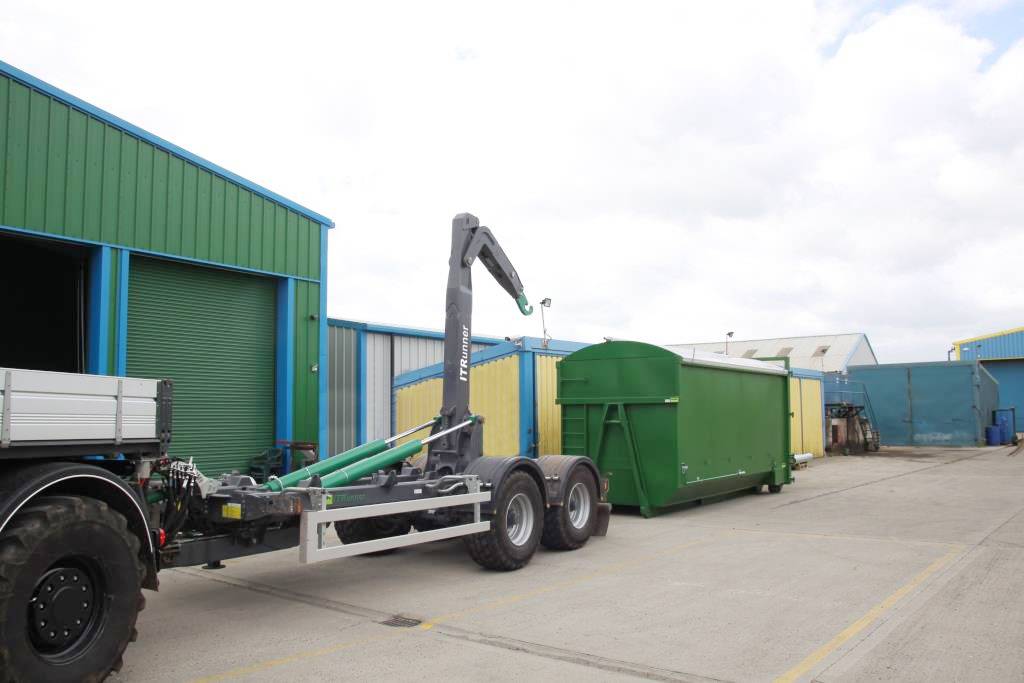

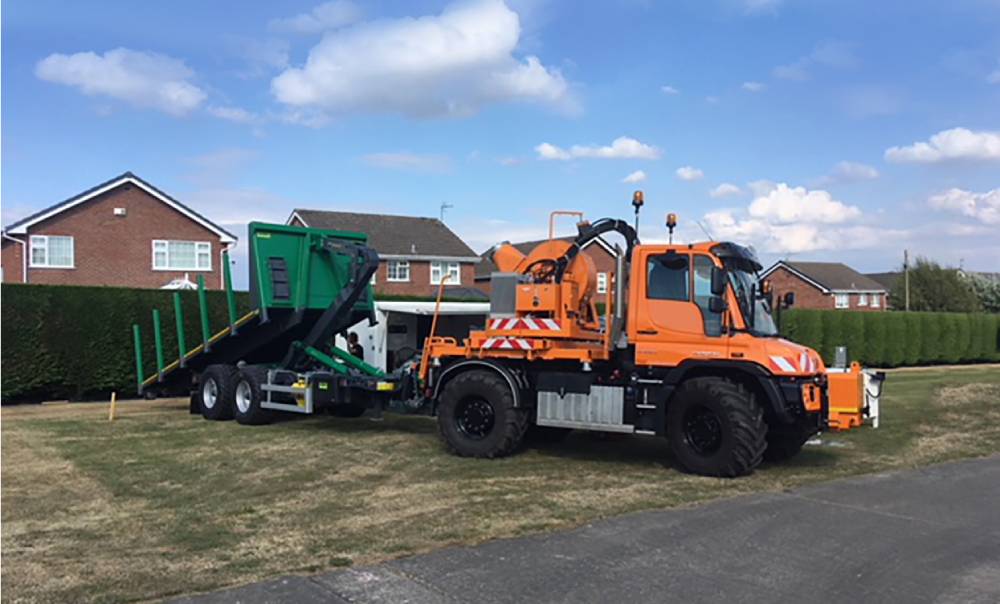

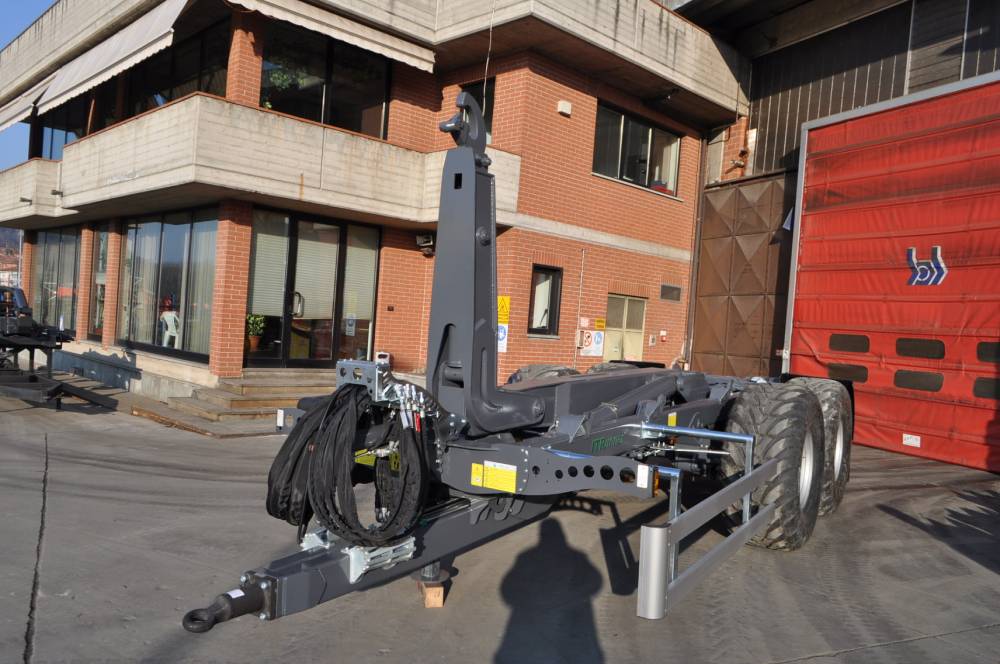

Photos

Back to ITR ARTICULATED
