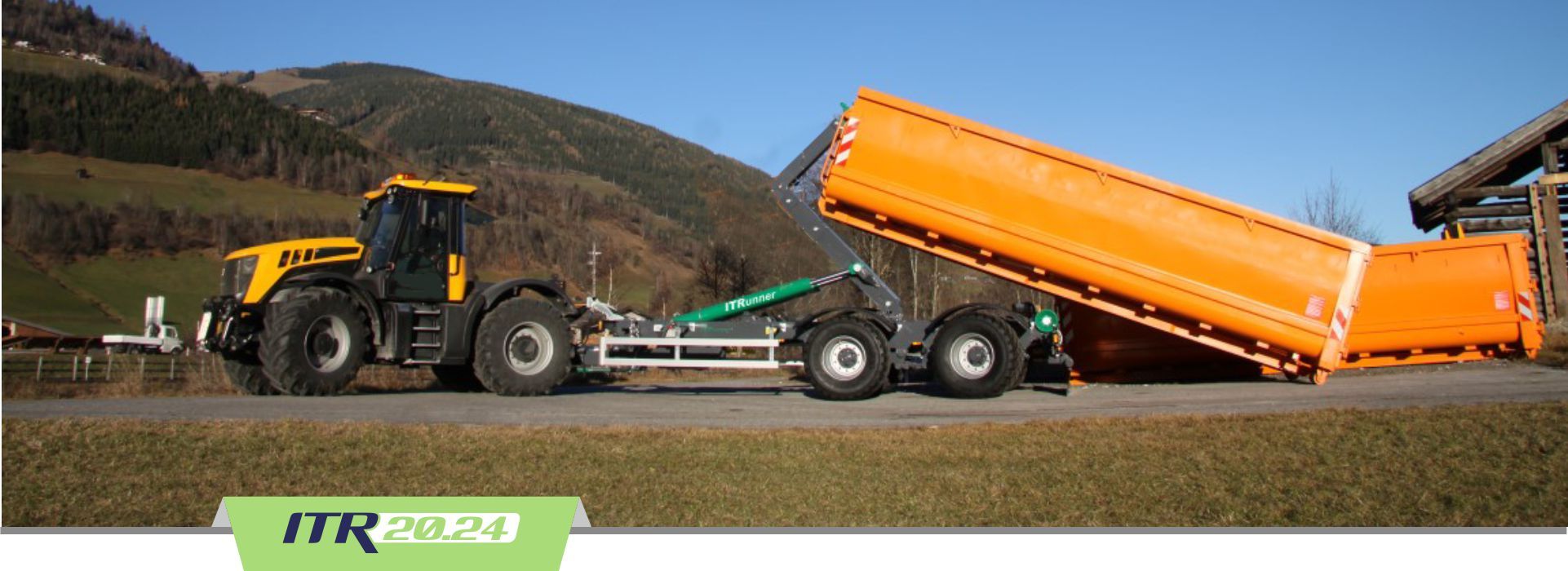

IMMAGINE_ITR 20 24T

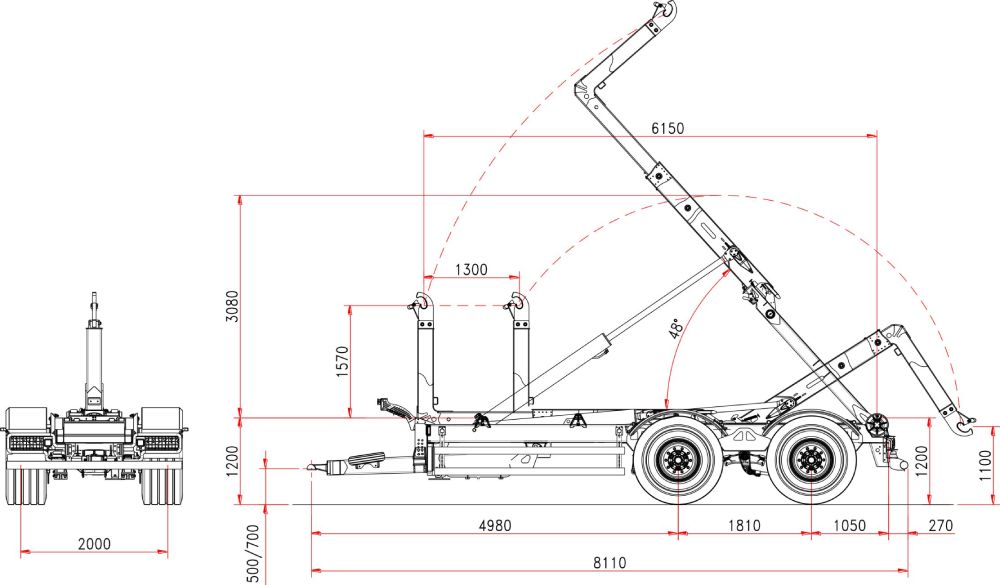

IMMAGINE_ITR 20 24T - disegno
2 AXLES HOOKLIFT ITR 20.24 TELESCOPIC HYDRAULIC SUSPENSIONS

Standard features

CHASSIS

Frame section
250 x 100 mm
Draw bar
silent block
Leaf spring suspension
24 t
Axlesnwheelbase
1810 mm
Axles section
2 x 150mm
Axles
fixed + fixed
Track
2000 mm
Brake drums
406 x 120
Braking system
hidraulic
Towing eye
fixed
Support foot
hidraulic
Wheel size
550/60 R22,5
Chassis loading level
1220 mm
Front stab. cilinder 3rd point
optional

WEIGHT AND DIMENSION

P.T.T. (G.T.W.)
24 t
Container handling cap.
5000/7000
Max speed
40 km/h
(*) Tare
6300 kg

TELESCOPIC ARM

Run
1300 mm
Hook level
1425/1460/1570
Container external locking
hidraulic
Tipping angle
48°
Hoist start cylinder
standard
Tipping capacity
22 t
Lifting capacity
22 t

OLEO-DYNAMIC SYSTEM

Tractor hydraulics
1 control d.a.
Oil volume (hooklift filled)
50 l
Hooklift filled:
Tipping
19 l
Loading/Uploading
22 l
3 sections electro-valves with control Bobeasy base
(*) Tare: the trailer weight is referred to the basic unit without options and accessories.

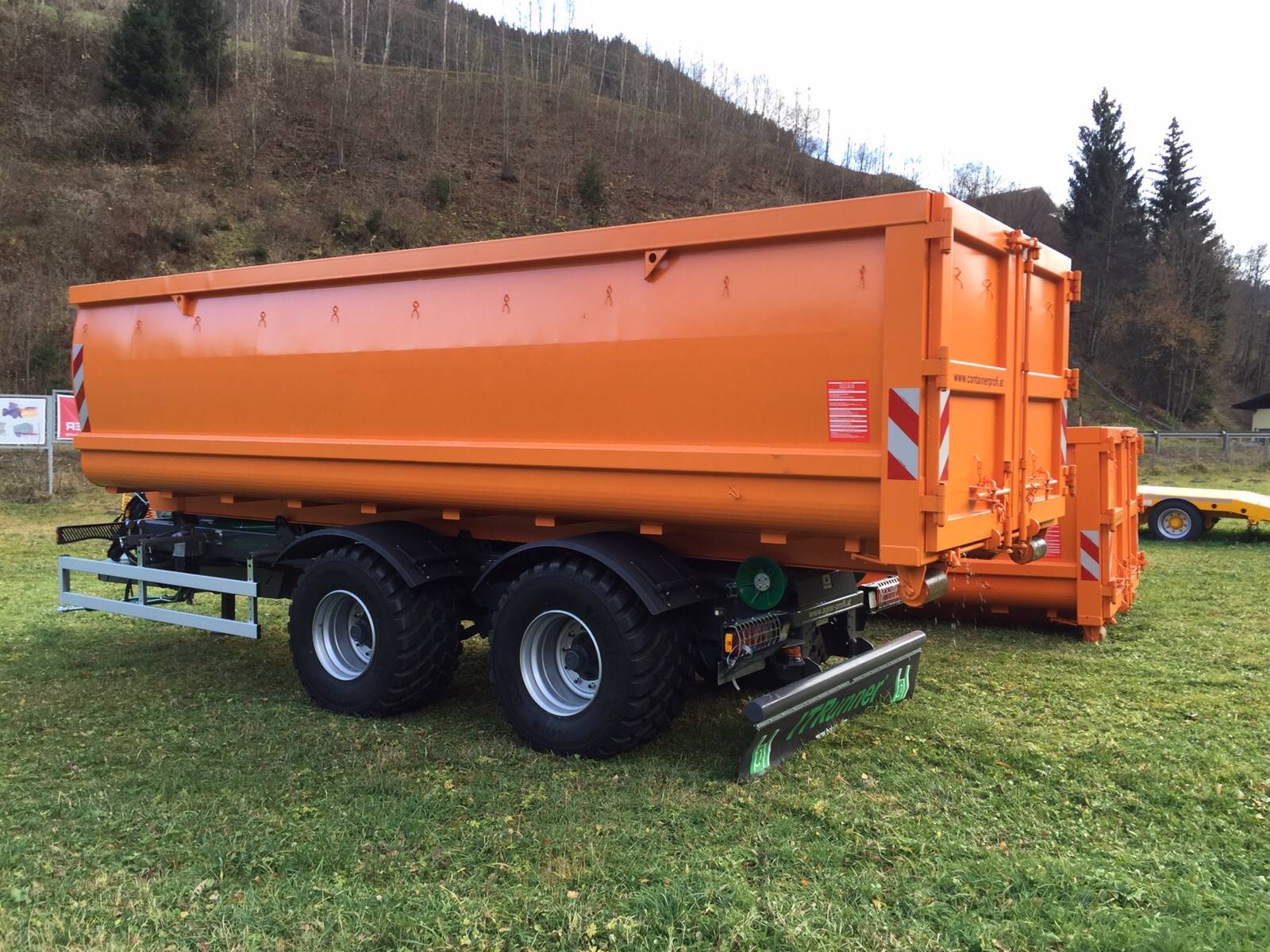

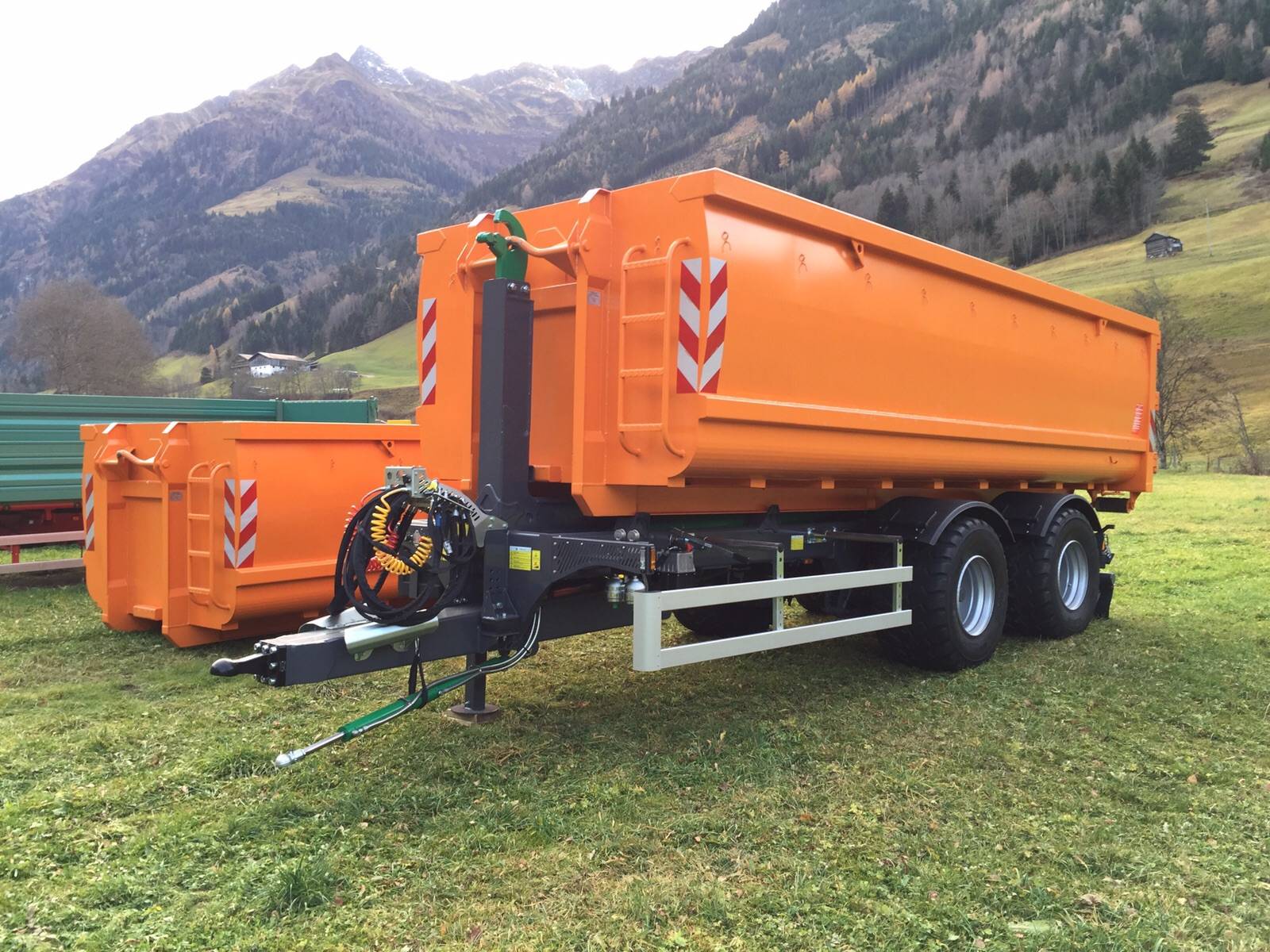

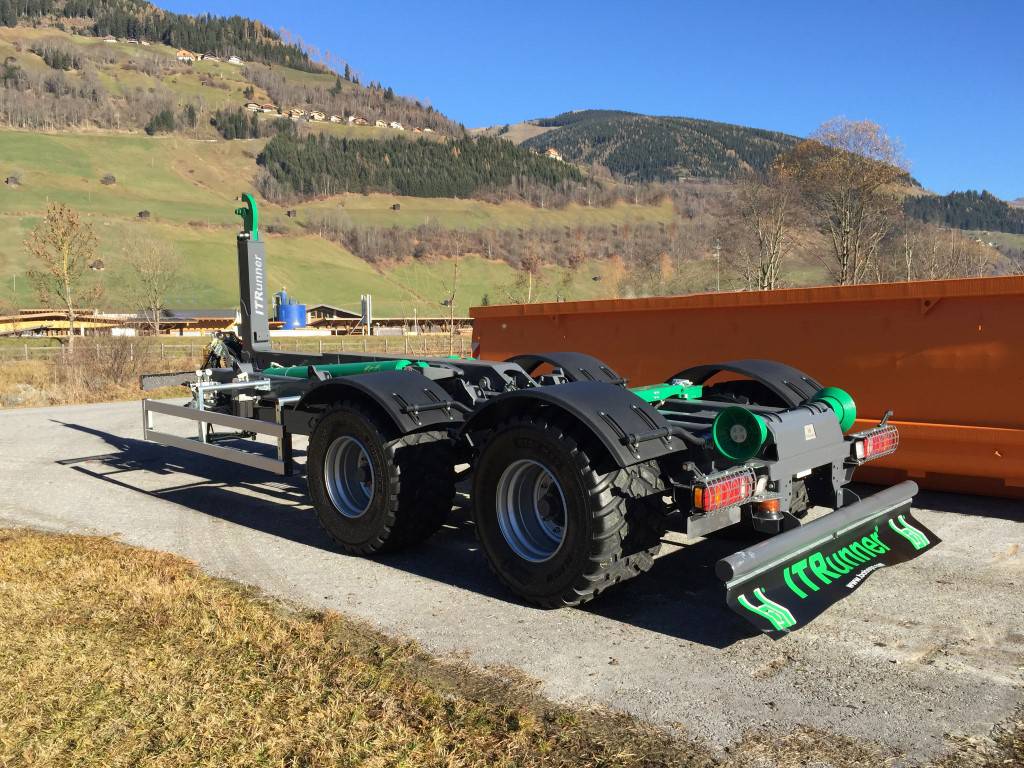

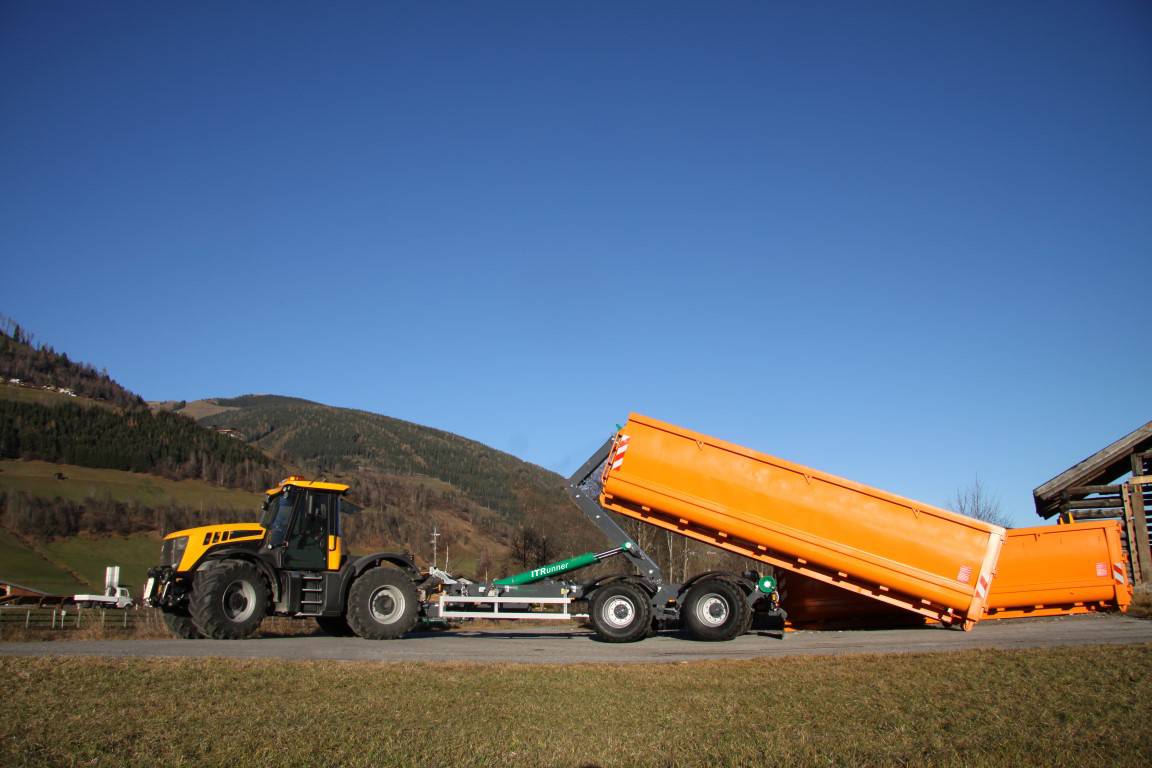

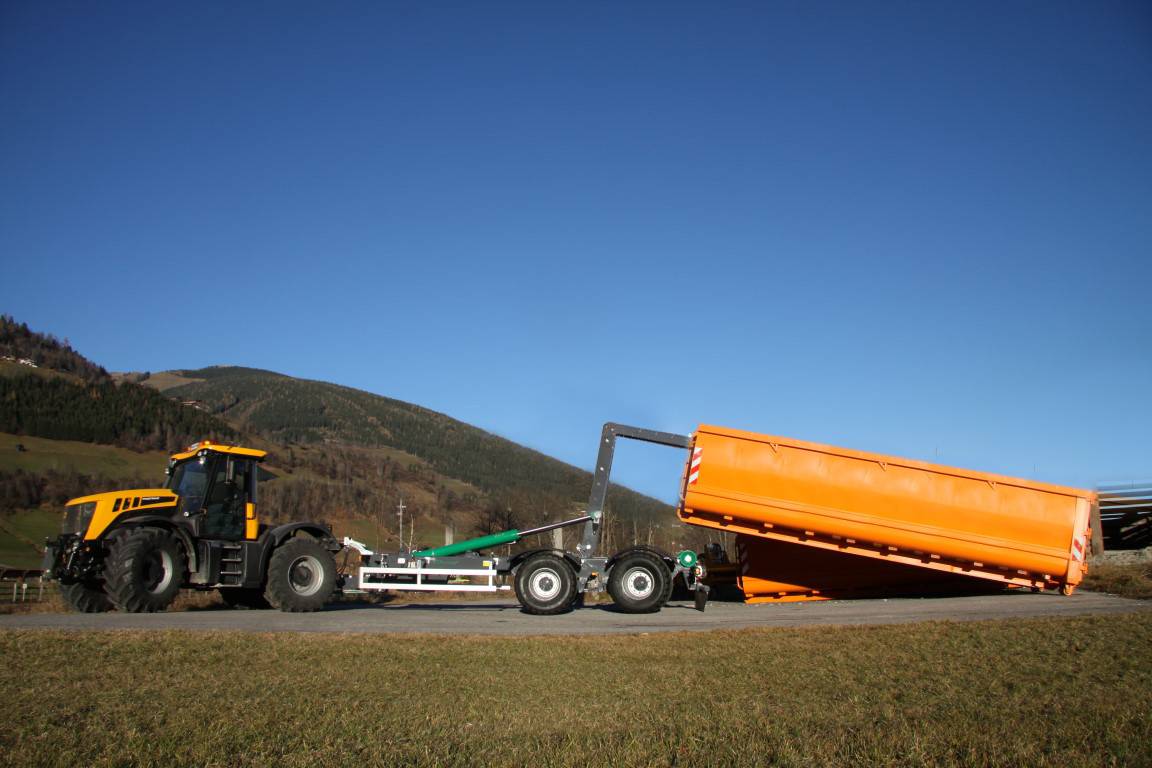

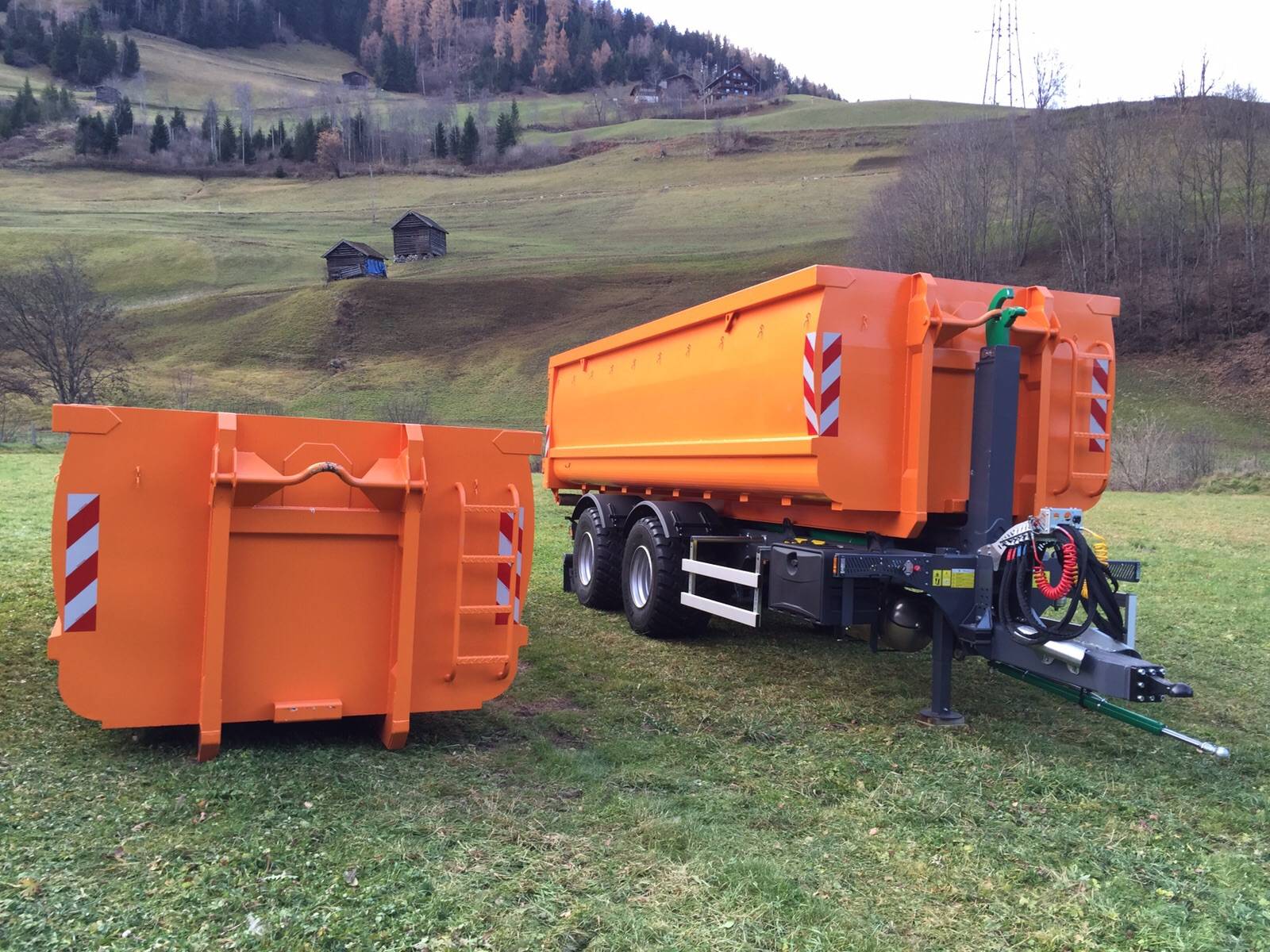

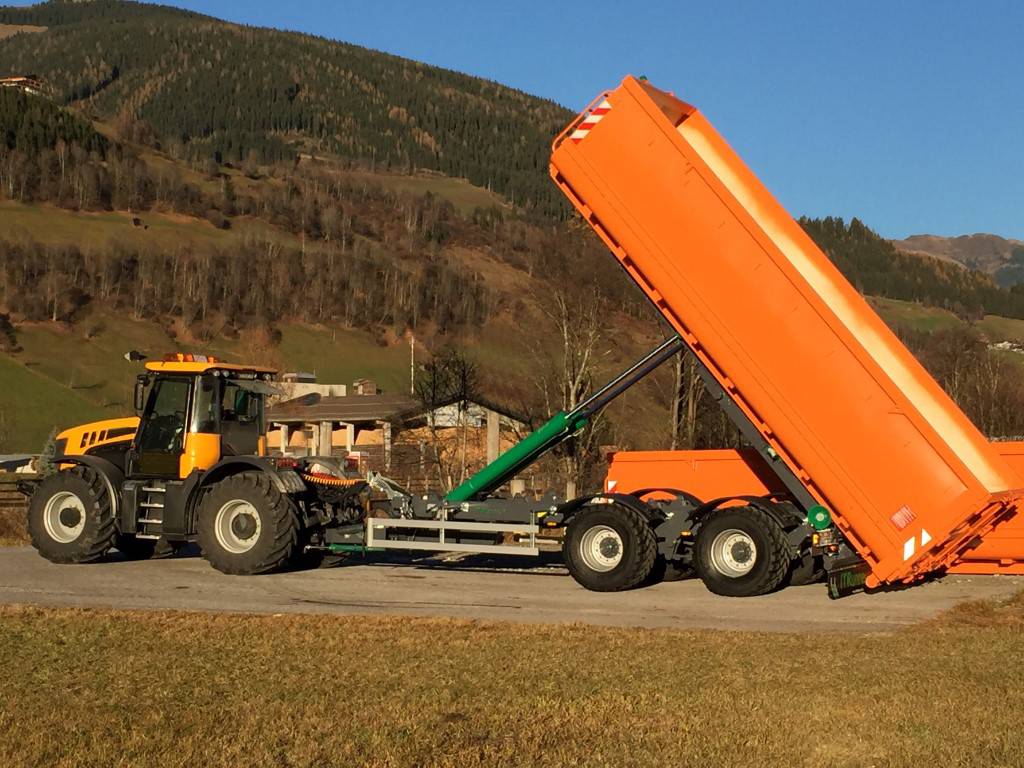

PHOTOS
