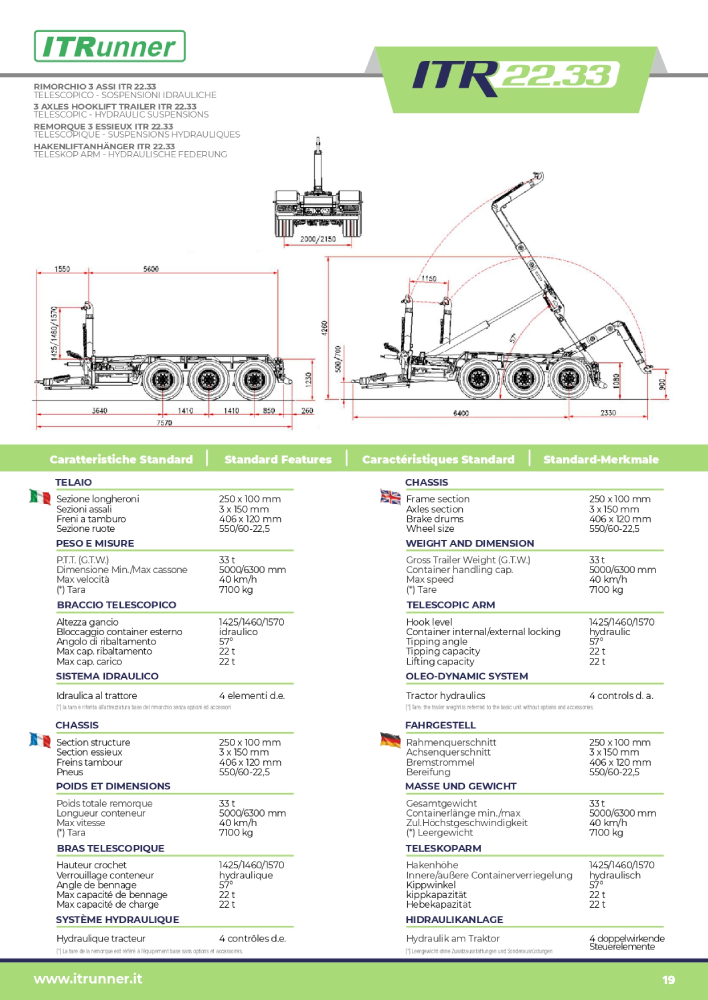

IMMAGINE_ITR 22 33 - disegno
3 AXLES HOOKLIFT ITR 22.33 TELESCOPIC HYDRAULIC SUSPENSIONS

Standard features

CHASSIS

Frame section
250 x 100 mm
Draw bar
hidraulic
Leaf spring suspension
33 t
Axles wheelbase
1410 mm
Axles section
3 x 150mm
Axles
fixed + fixed + fixed
Track
2000 mm
Brake drums
406 x 120
Braking system
hidraulic
Towing eye
turning
Support foot
2xhydraulics
Wheel size
550/60 R22,5
Chassis loading level
1230 mm
Front stab. Cylinder 3 point
standard

WEIGHT AND DIMENSION

P.T.T. (G.T.W.)
33 t
Container handling cap.
5000/6300
Max speed
40 km/h
(*) Tare
7100 kg

TELESCOPIC ARM

Run
1150 mm
Hook level
1425/1460/1570
Container internal/external locking
hydraulic
Tipping angle
57°
Hoist start cylinder
standard
Tipping capacity
22 t
Lifting capacity
22 t

OLEO-DYNAMIC SYSTEM

Tractor hydraulics
4 controls d.a.
Oil volume (hooklift filled)
50 l
Hooklift filled:
Tipping
12 l
Loading/unloading
15 l
3 sections electro-valves with control Bobeasy base
(*) Tare: the trailer weight is referred to the basic unit without options and accessories.
