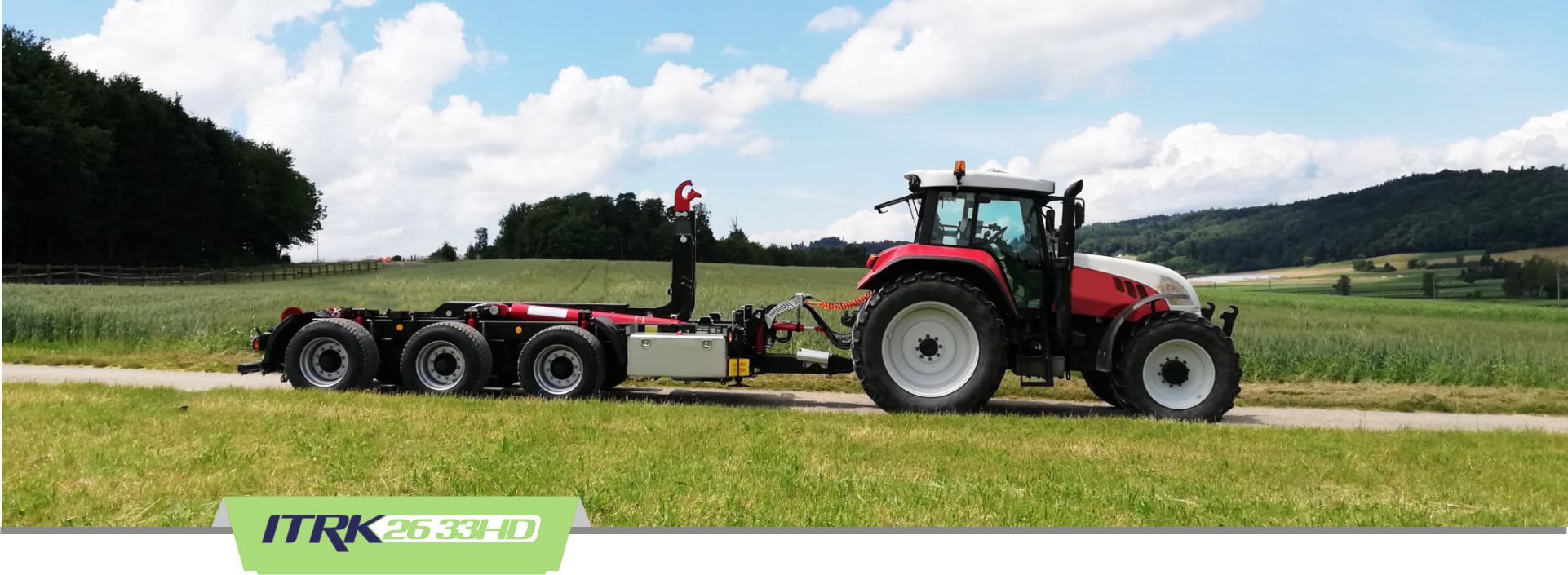

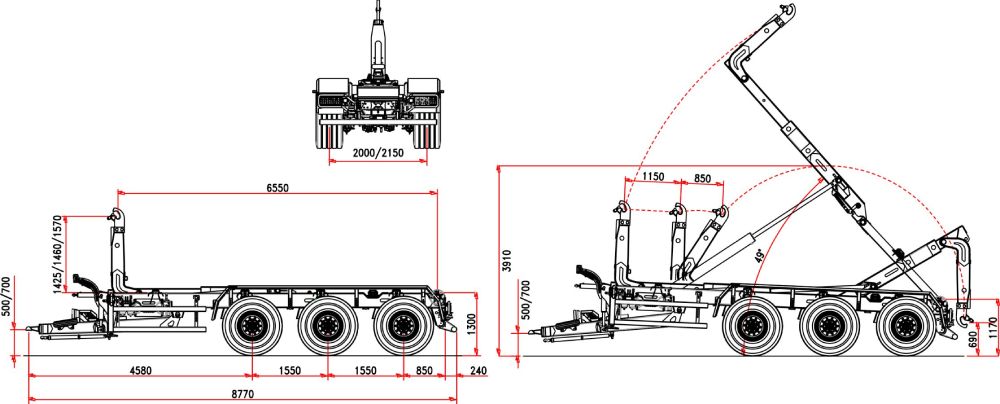

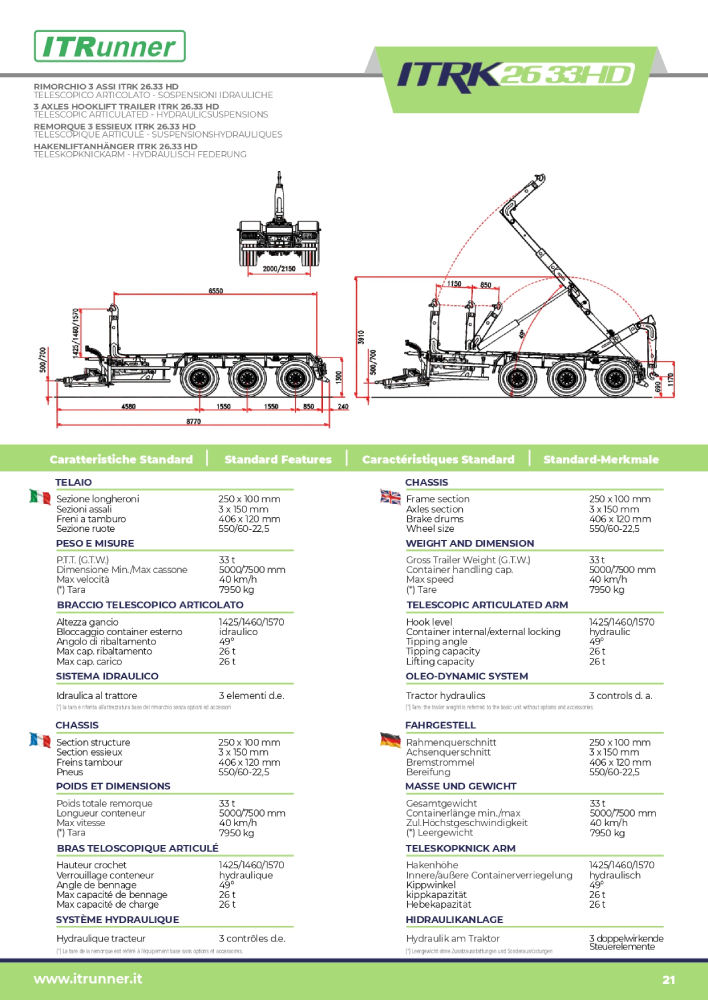

3 AXLES HOOKLIFT ITRK 26.33 HD TELESCOPIC AND ARTICULATED HYDRAULIC SUSPENSIONS

Standard features

CHASSIS

Frame section

250 x 100 mm

Draw bar

hidraulic

Suspension hydraulic

33 t

Axles wheelbase

1550 mm

Axles section

3 x 150 mm

Axles

fixed + fixed + fixed

Track

2000 mm

Brake drums

406*120

Braking system

hydraulic

Towing eye

turning

Support foot

2xhydraulic

Wheel size

550/60 R22,5

Chassis loading level

1300 mm

Front stab. Cylinder 3 point

standard

WEIGHT AND DIMENSION

P.T.T. (G.T.W.)

33 t

Container handling cap.

5000/7500

Max speed

40 km/h

(*) Tare

7950 kg

TELESCOPIC AND ARTICULATED ARM

Run

1150 + 850 mm

Hook level

1425/1460/1570

Container internal/external locking

hydraulic

Tipping angle

49°

Tipping capacity

26 t

Lifting capacity

26 t

OLEO-DYNAMIC SYSTEM

Tractor hydraulics

3 controls d. a.

Trailer hydraulics:

Cardan + piston pump

108 l/1000 rpm

Oil tank

160 l

Flow control electro-hydraulic with ground manual levers and remote radio control Bobeasy

(*) Tare: the trailer weight is referred to the basic unit without options and accessories.

Download scheda

Download brochure

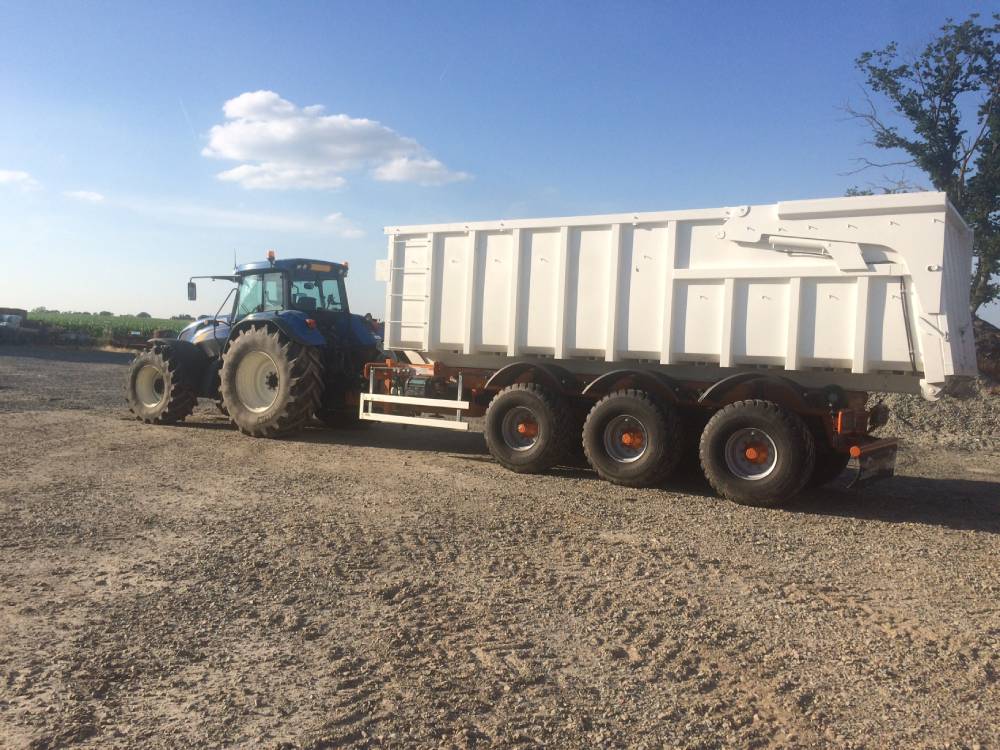

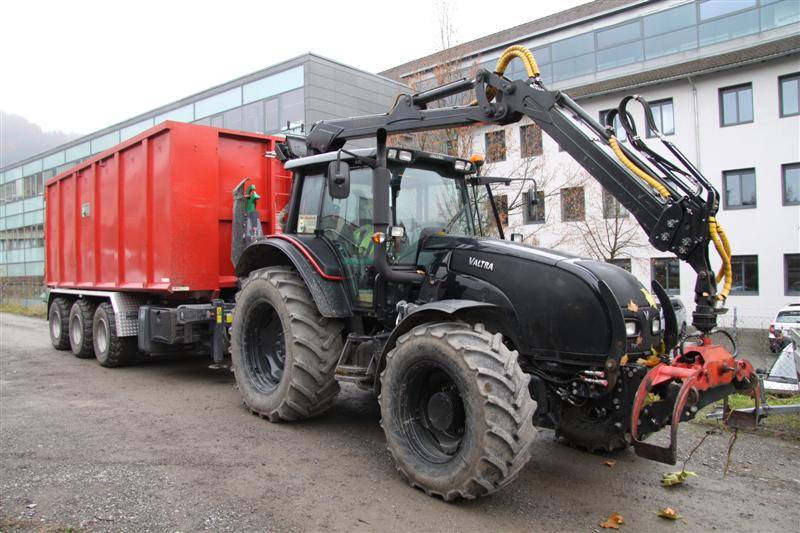

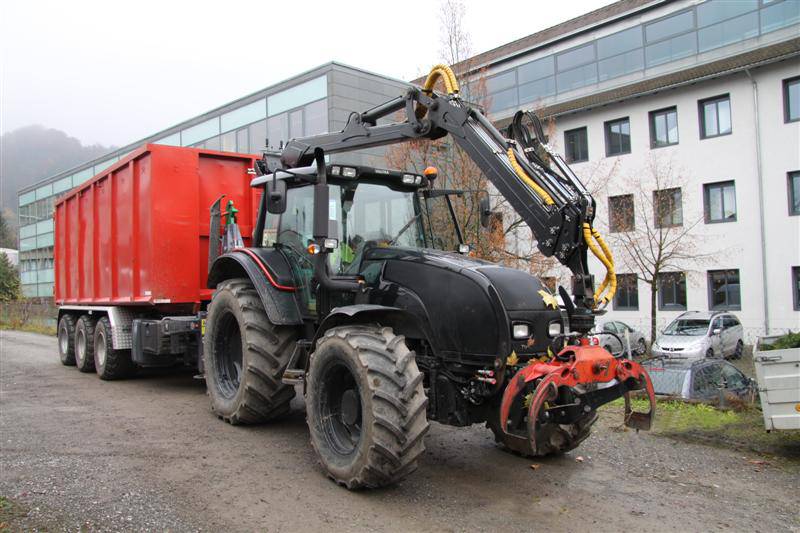

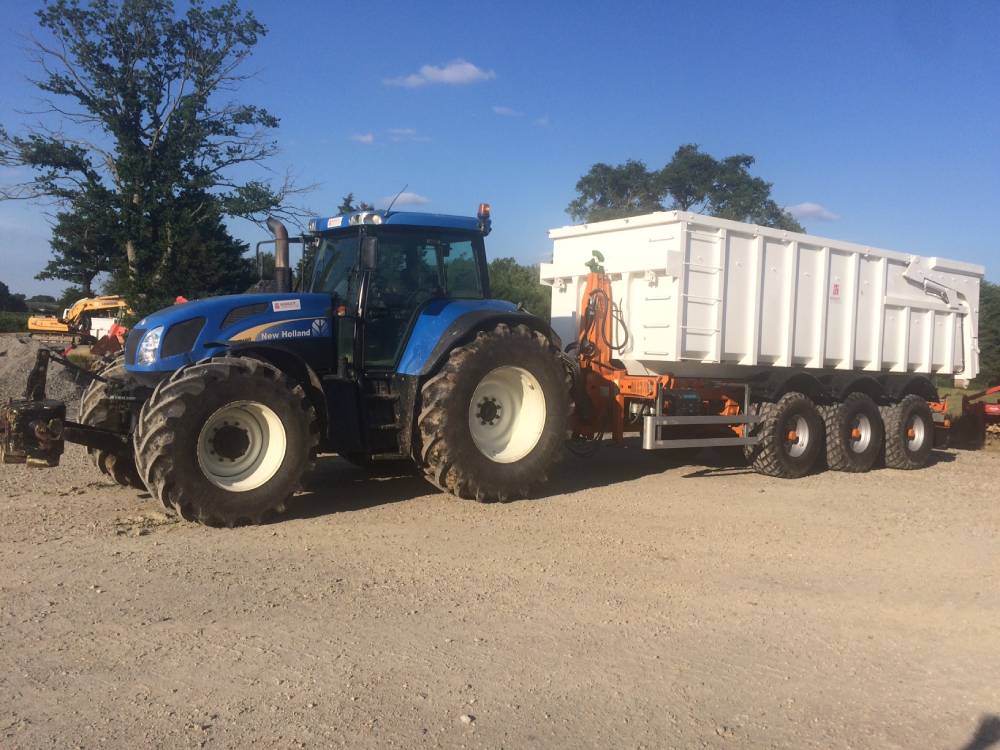

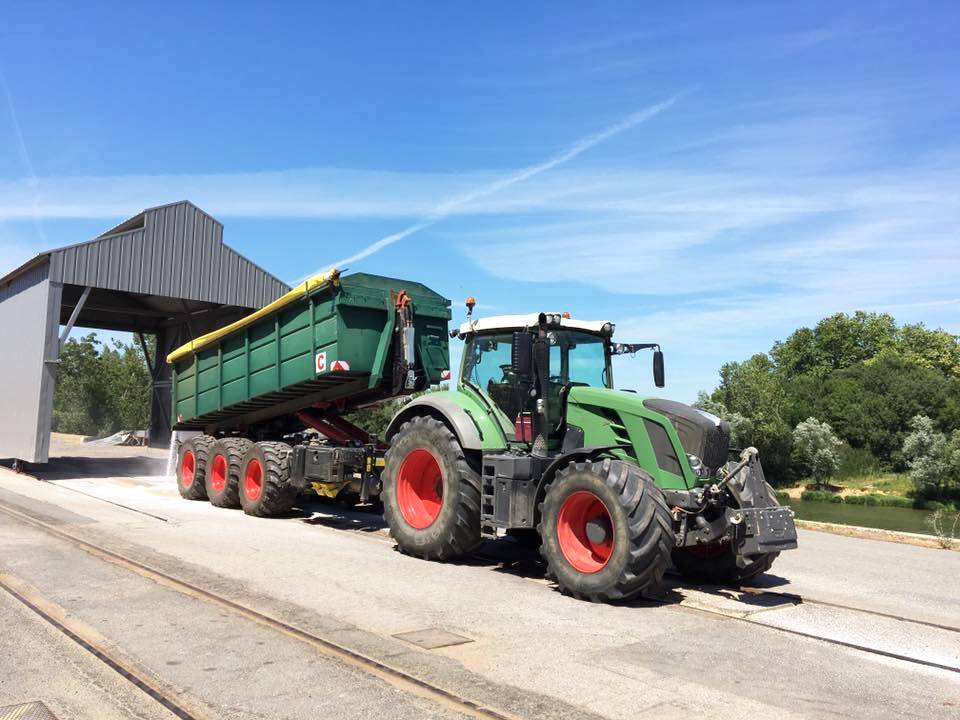

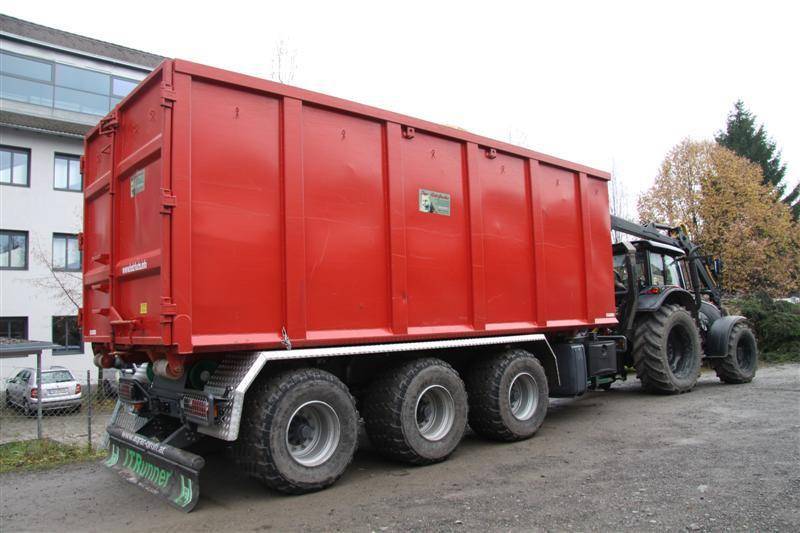

PHOTOS
