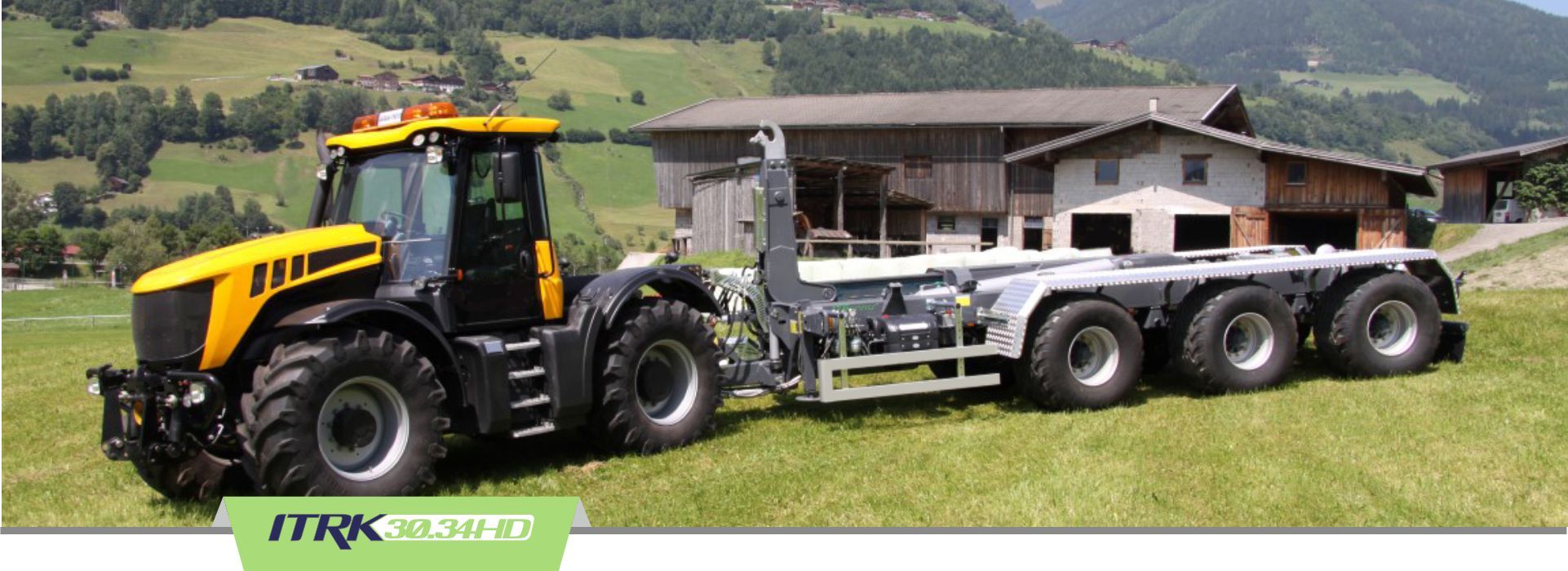

IMMAGINE_ITRK 30 34HD

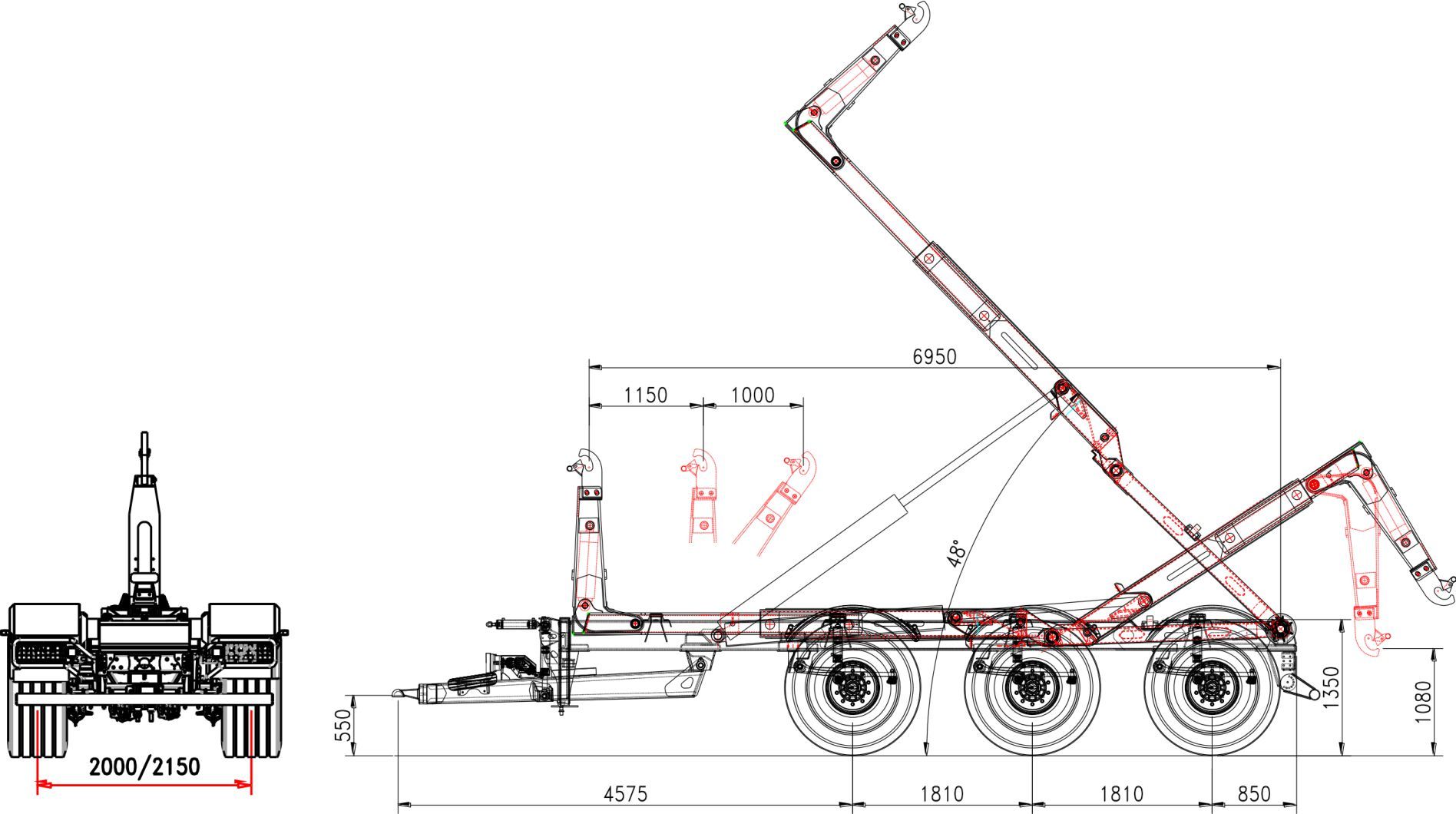

IMMAGINE_ITRK 30 34HD - disegno
3 AXLES HOOKLIFT ITRK 30.34 HD TELESCOPIC AND ARTICULATED  HYDRAULIC SUSPENSIONS

Standard features

CHASSIS

Frame section
300 x 100 mm
Draw bar
hidraulic
Suspension hydraulic
36 t
Axles wheelbase
1810 mm
Axles section
3 x 150 mm
Axles
fixed + fixed + fixed
Track
2000 mm
Brake drums
406 x 120
Braking system
hydraulic
Towing eye
turning
Support foot
2xhydraulic
Wheel size
500/60 R22,5
Chassis loading level
1350 mm
Front stab. Cylinder 3 point
standard

WEIGHT AND DIMENSION

P.T.T. (G.T.W.)
33/34 t
Container handling cap.
5000/8200
Max speed
40 km/h
(*) Tare
8600 kg

TELESCOPIC AND ARTICULATED ARM

Run
1150 + 1000 mm
Hook level
1425/1460/1570
Container internal/external locking
hydraulic reverse
Tipping angle
48°
Hoist start cylinder
standard
Tipping capacity
30 t
Lifting capacity
30 t

OLEO-DYNAMIC SYSTEM

Tractor hydraulics
3 controls d. a.
Cardan + piston pump
108 l/1000 rpm
Oil tank
160 l
Flow control electro-hydraulic with ground manual levers and remote radio control Bobeasy
(*) Tare: the trailer weight is referred to the basic unit without options and accessories.

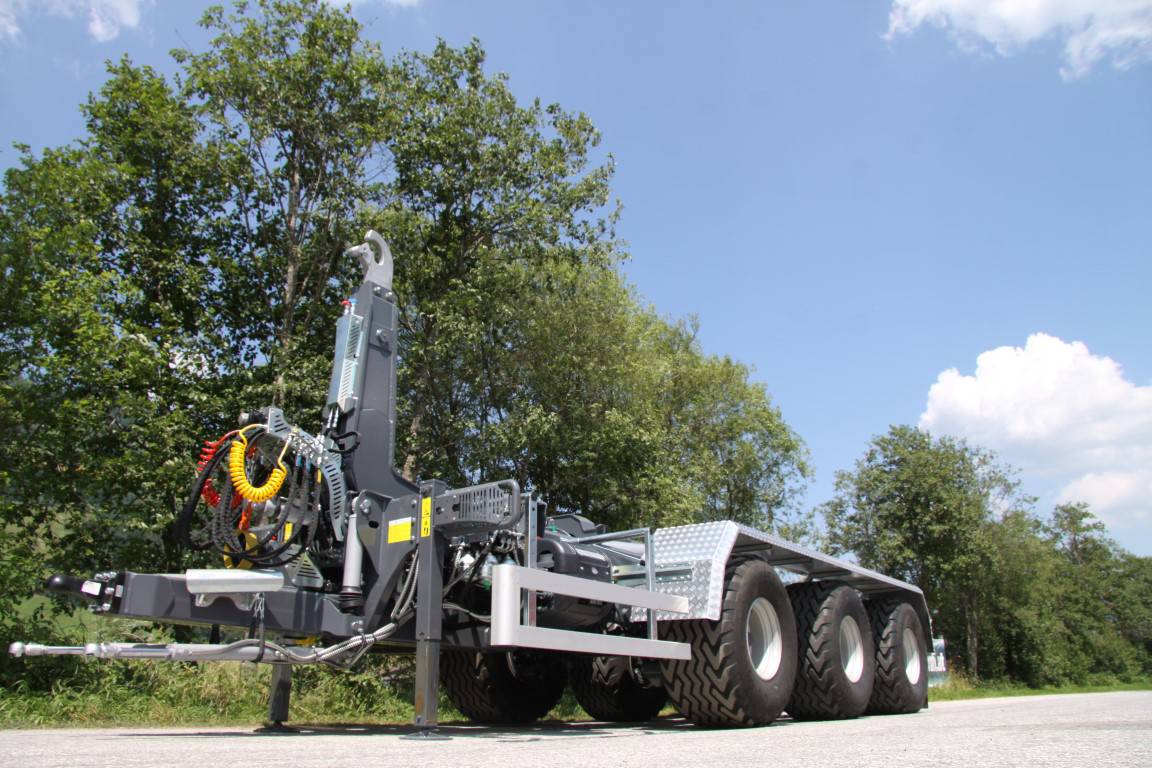

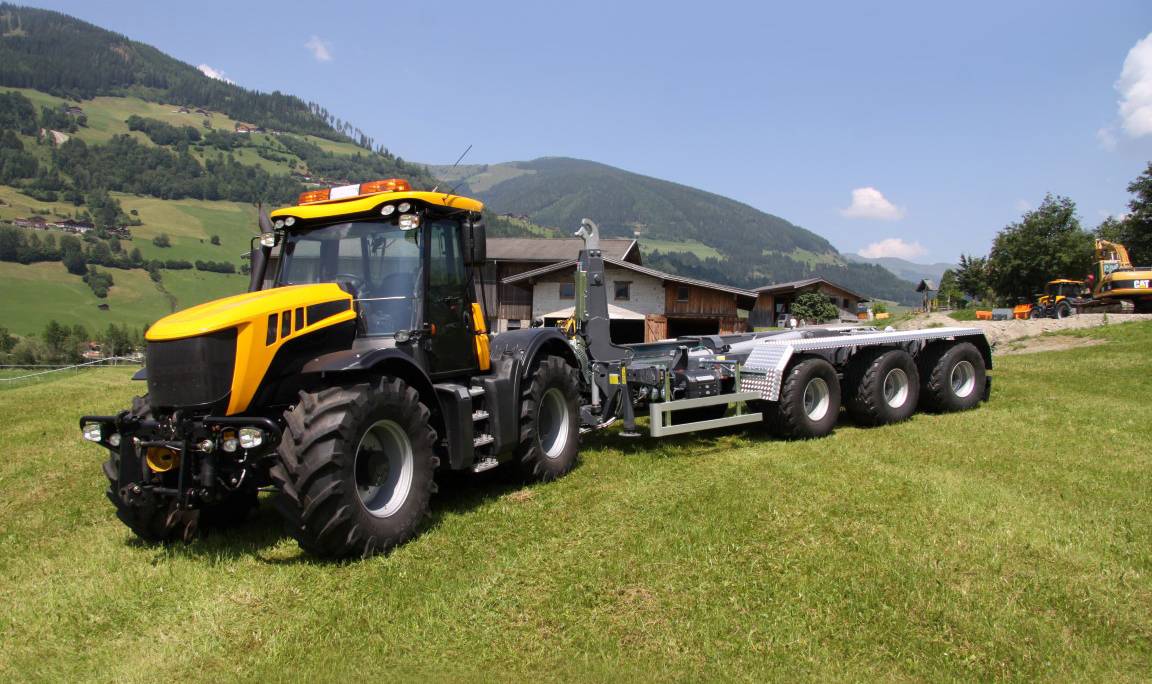

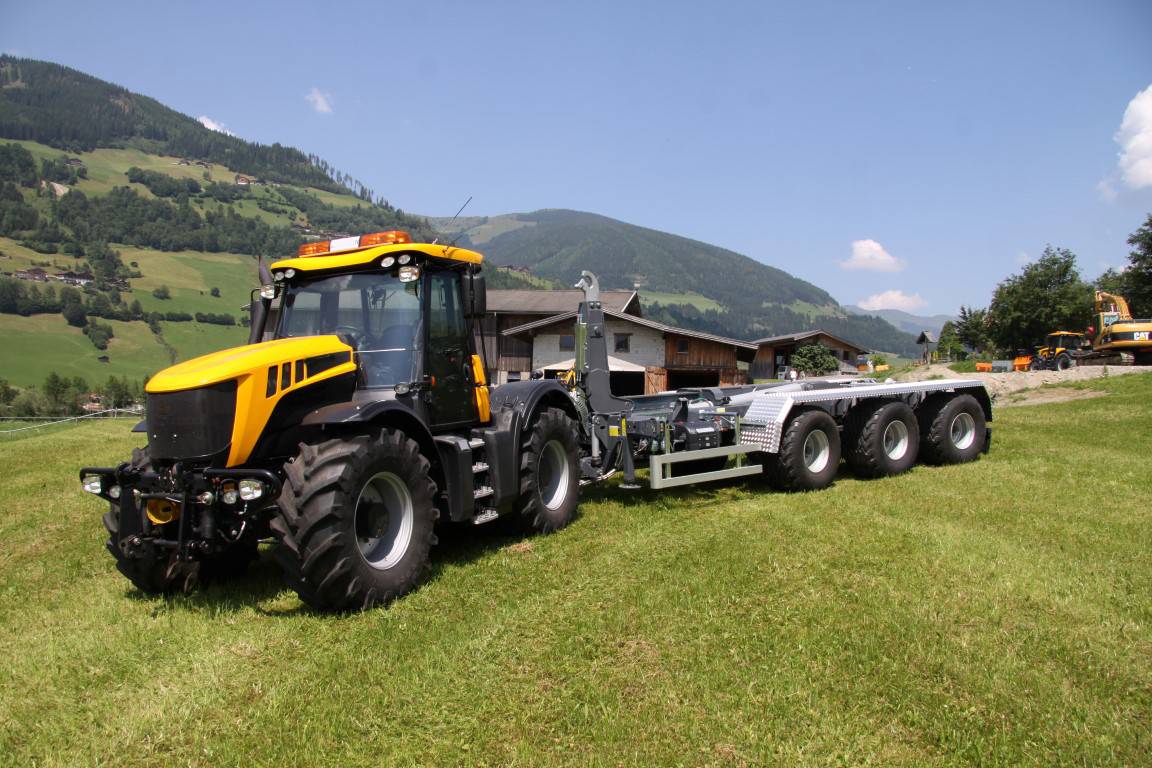

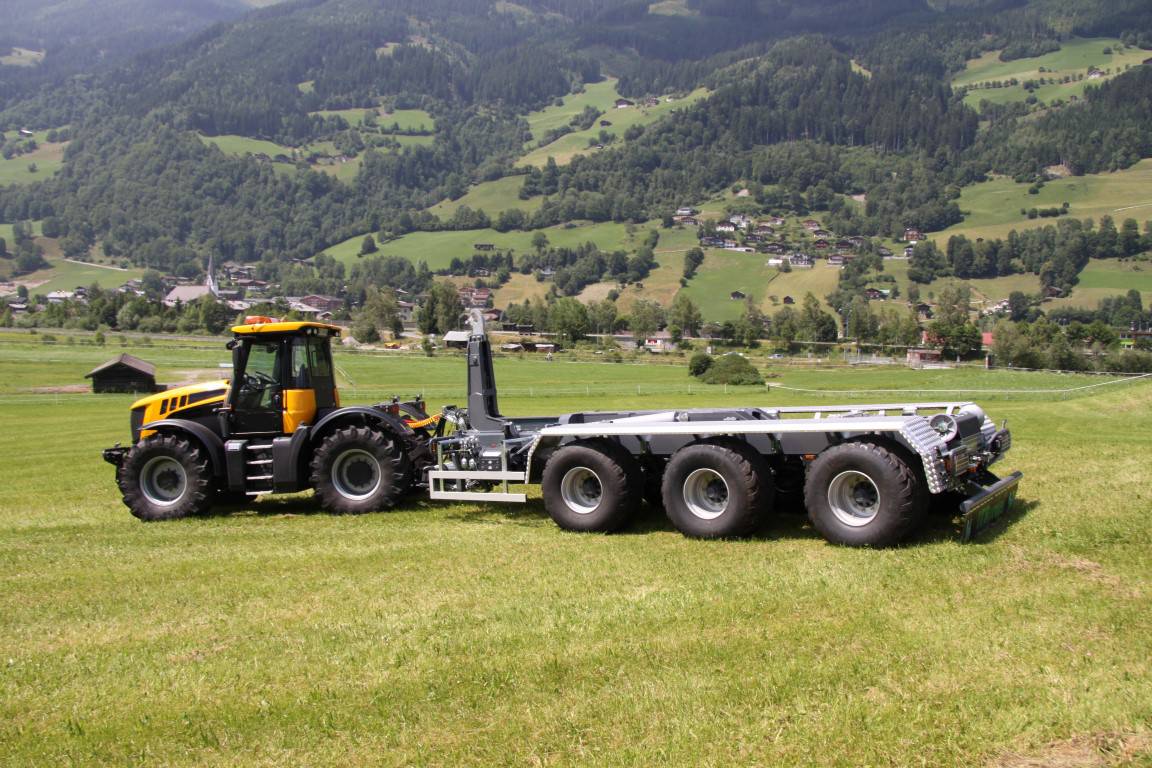

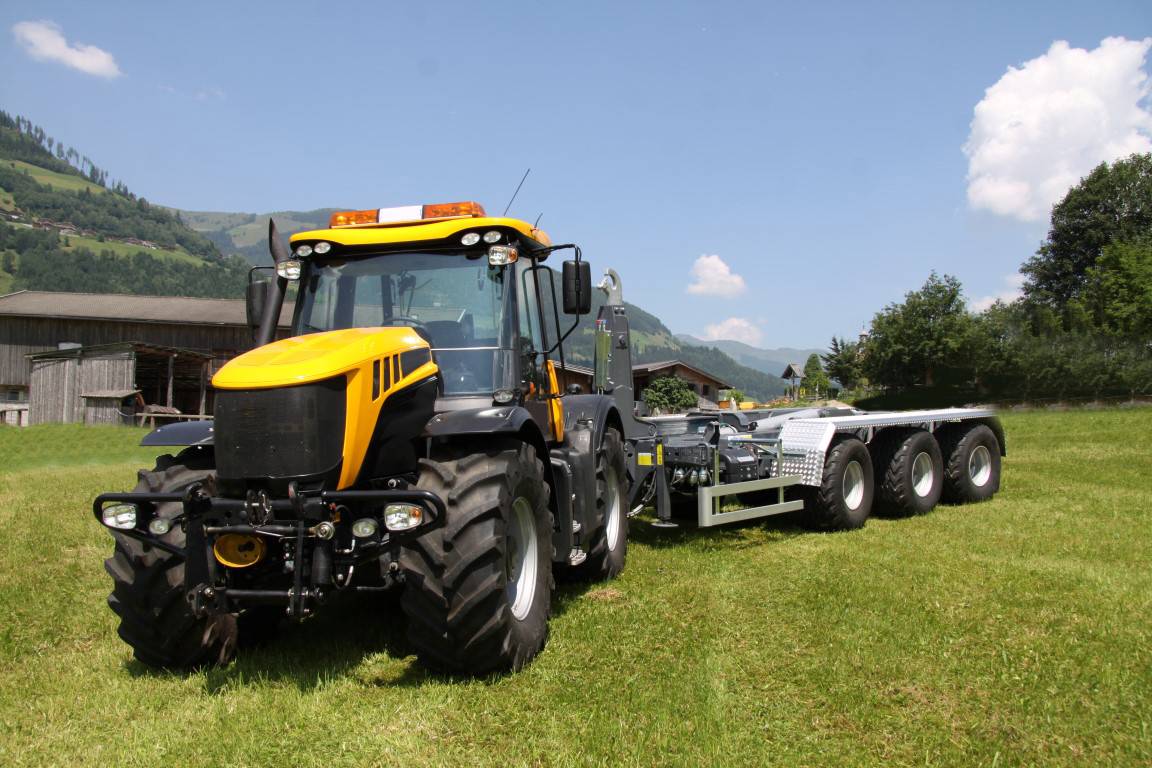

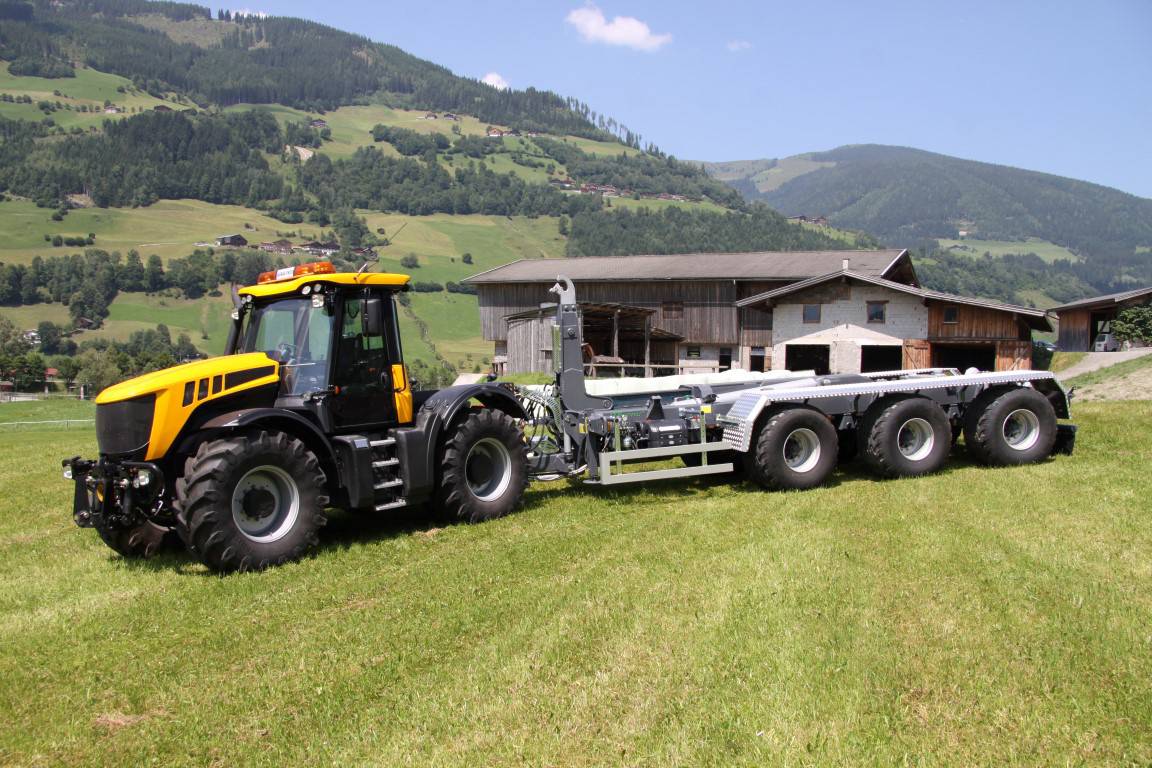

PHOTOS
